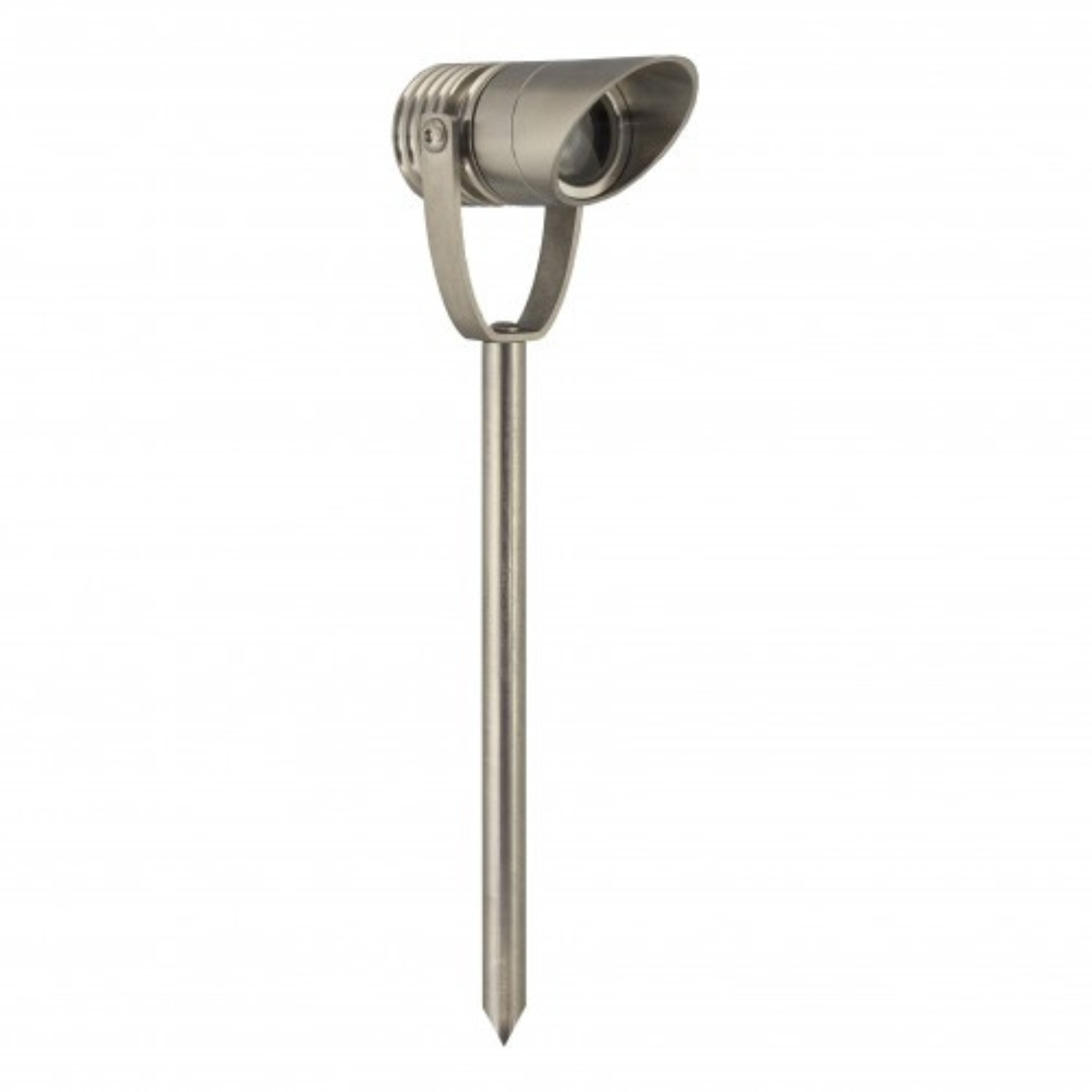

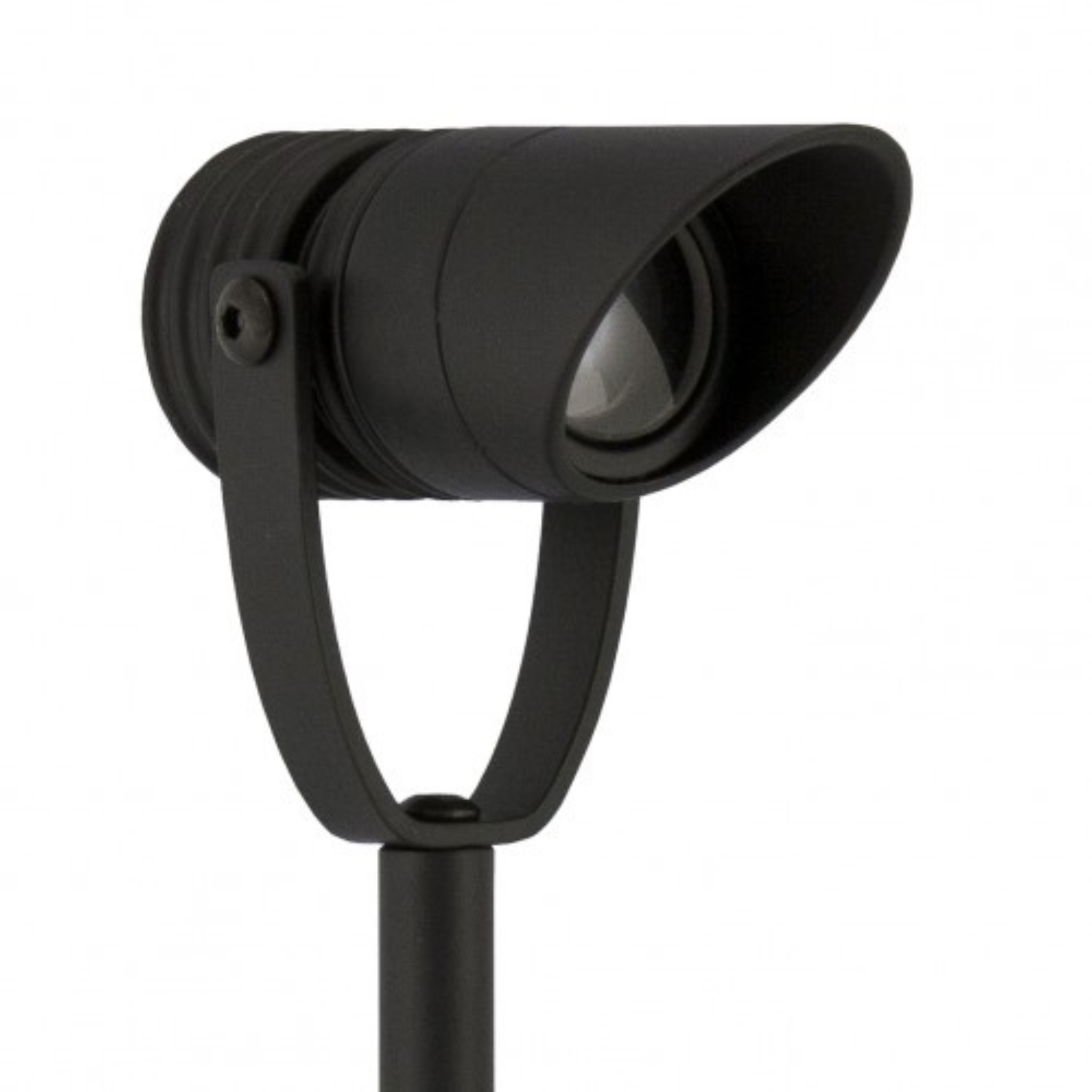

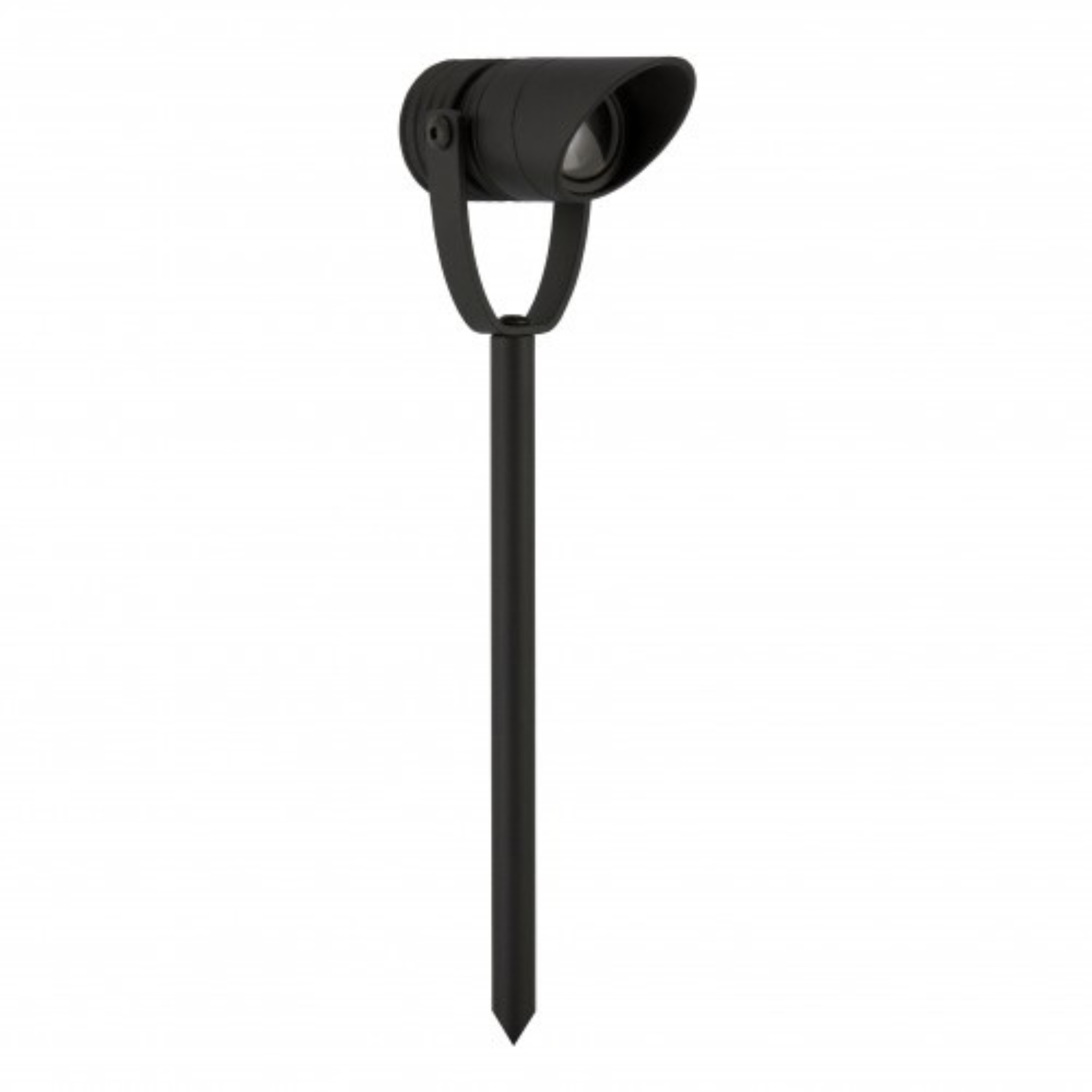

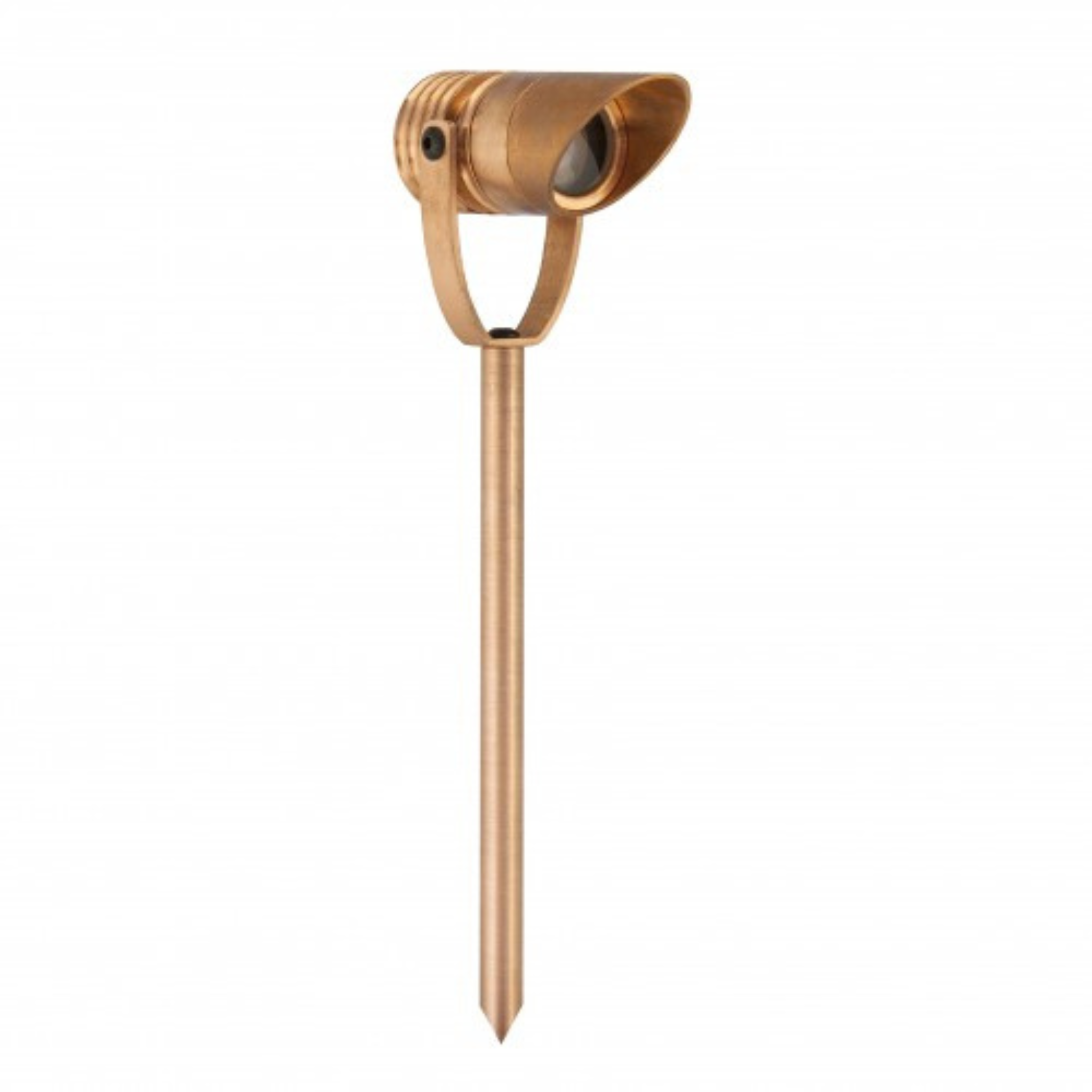

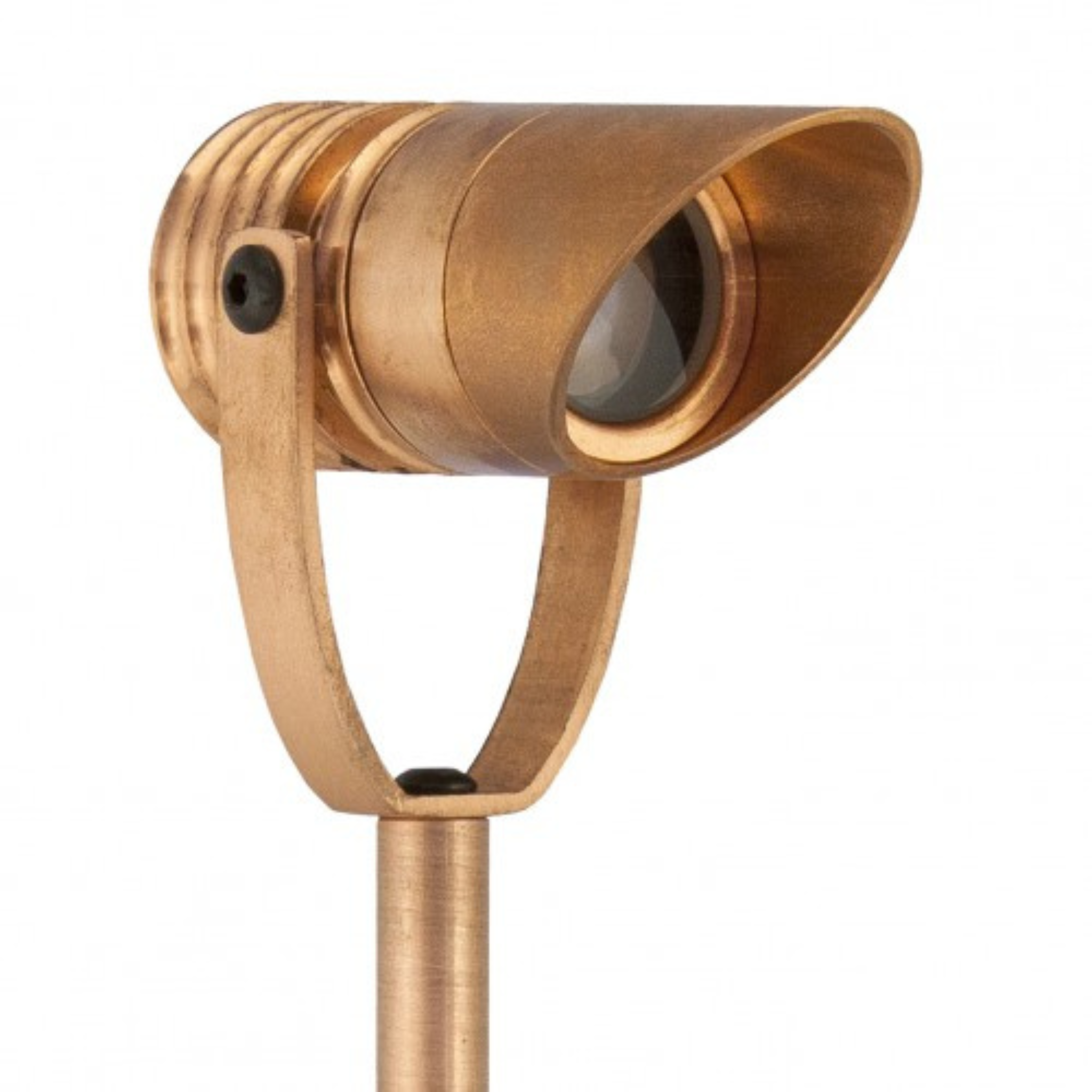

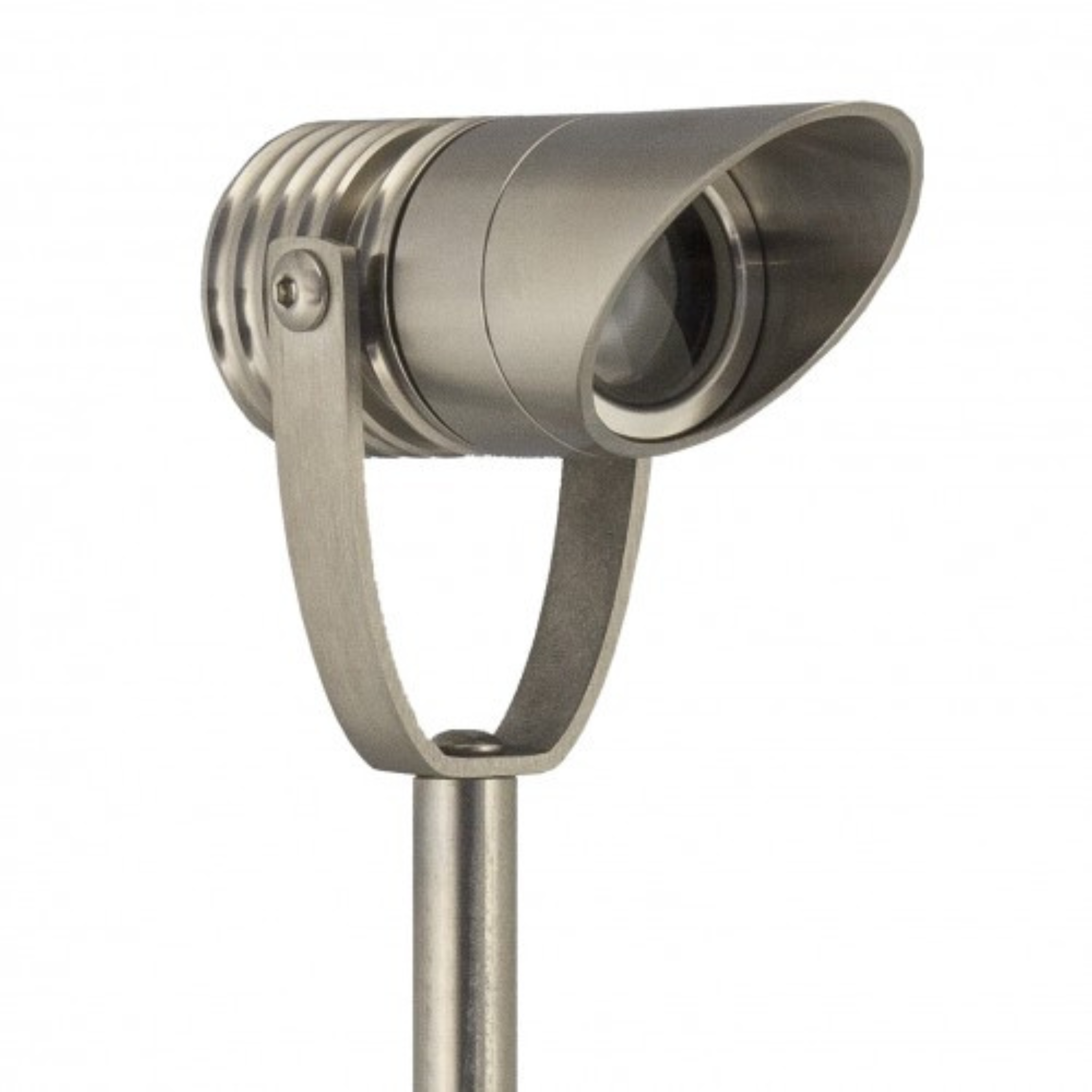

LuxR Modux One Spike Spot With Glare Guard (Series Circuit) - 265mm LuxR

LuxR Modux One Spike Spot With Glare Guard (Series Circuit) - IP68

£187.00
Flexible Financing Options Available
Delivery Time: 1–3 Working Days (in stock) or 3-5 Weeks (out of stock) - Check Availability

Notify me when back in stock

LuxR Modux One Spike Spot with Glare Guard

The LuxR Modux One One Spike Spot with Glare Guard is a compact, low-voltage outdoor spike spotlight designed to go into garden soil or turf. It features an integrated glare guard, giving you more control over the beam direction, perfect for feature lighting.

The LuxR range is made from the most premium materials, meaning you can buy with confidence, especially given the 5-10 year warranty period. In addition, it is IP68 rated, giving you the option to position the light wherever you like.

Key Features:

  • Dimmable, constant current (350 mA) low-voltage operation.

  • Choose from marine-grade 316 stainless steel, solid copper or powder-coated aluminium.

  • Fully sealed to IP68.

  • Integrated glare guard.

  • LED module is replaceable (Cree XPG-3), and beam angles can be swapped out.

  • Colour temperature options: 2700K, 3000K, 4000K, as well as red, green, blue and amber.

  • Beam control options: 15°, 30°, 53°, or 50° + 17°

  • Lens finish: clear or frosted

LuxR Modux One Spike Spot with Glare Guard Specifications

Specification Value / Options
Input Current 350 mA
Forward Voltage 3 Vf
Power 1 W max
Efficacy 80 Lm/W (delivered, unobstructed beam)
Colours / Colour Temperatures 2700 K, 3000 K, 4000 K, 5000 K; red, green, blue, amber
CRI Ra 90 (for 3000 K)
Beam Angles (FWHM) 15°, 30°, 53°, 50° + 17°
Lens Options Clear, Frosted
Standards / Rating IP68, CE, UL676, UL1598, UL1838, UL2108
Light Engine Plug-in dimmable module with Cree XPG-3 LED
Driver Requirement Remote constant-current driver, or optional integral 12 V AC or 24 V DC driver
Mounting Format Spike mount for insertion into soil/turf
Materials / Finishes 316 stainless steel, solid copper, powder-coated aluminium
Warranty Standard high-quality materials warranty (refer to LuxR documentation)

Description

LuxR Modux One Spike Spot with Glare Guard

The LuxR Modux One One Spike Spot with Glare Guard is a compact, low-voltage outdoor spike spotlight designed to go into garden soil or turf. It features an integrated glare guard, giving you more control over the beam direction, perfect for feature lighting.

The LuxR range is made from the most premium materials, meaning you can buy with confidence, especially given the 5-10 year warranty period. In addition, it is IP68 rated, giving you the option to position the light wherever you like.

Key Features:

  • Dimmable, constant current (350 mA) low-voltage operation.

  • Choose from marine-grade 316 stainless steel, solid copper or powder-coated aluminium.

  • Fully sealed to IP68.

  • Integrated glare guard.

  • LED module is replaceable (Cree XPG-3), and beam angles can be swapped out.

  • Colour temperature options: 2700K, 3000K, 4000K, as well as red, green, blue and amber.

  • Beam control options: 15°, 30°, 53°, or 50° + 17°

  • Lens finish: clear or frosted

LuxR Modux One Spike Spot with Glare Guard Specifications

Specification Value / Options
Input Current 350 mA
Forward Voltage 3 Vf
Power 1 W max
Efficacy 80 Lm/W (delivered, unobstructed beam)
Colours / Colour Temperatures 2700 K, 3000 K, 4000 K, 5000 K; red, green, blue, amber
CRI Ra 90 (for 3000 K)
Beam Angles (FWHM) 15°, 30°, 53°, 50° + 17°
Lens Options Clear, Frosted
Standards / Rating IP68, CE, UL676, UL1598, UL1838, UL2108
Light Engine Plug-in dimmable module with Cree XPG-3 LED
Driver Requirement Remote constant-current driver, or optional integral 12 V AC or 24 V DC driver
Mounting Format Spike mount for insertion into soil/turf
Materials / Finishes 316 stainless steel, solid copper, powder-coated aluminium
Warranty Standard high-quality materials warranty (refer to LuxR documentation)

Series vs Parallel

Series vs Parallel Circuits

When planning your outdoor lighting, it helps to understand how series and parallel circuits work, so you can pick the setup that suits your space.

What Are They?

Series circuits connect lights one after another along a single path, meaning the same current flows through each light.

A diagram showing how a series circuit works

Parallel circuits connect each light directly to the power source, so each operates independently. The type of circuit you choose affects brightness, maintenance, and overall layout.

A diagram showing how a parallel circuit works

Why Choose Series?

Series circuits are straightforward to install and need less wiring, making them a practical choice for many outdoor lighting setups. They provide a uniform glow across all lights and are easy to extend along a path or around a patio. With modern outdoor lights being highly reliable, interruptions are rare, meaning series circuits can offer a simple, efficient, and visually pleasing solution for most homes.

Why Choose Parallel?

Parallel circuits allow each light to operate independently, so if one fails, the rest continue to shine. They give consistent brightness across all bulbs and are flexible if you plan to move or add lights later. However, they can be slightly more complex to install and requires more cabling (legally required to use armoured cables).

Both types of circuits have their advantages, but for a clean, efficient setup that delivers a consistent glow, most homeowners find series circuits the better option.

Which Material To Choose?

Powder-Coated Light Fittings (Standard)

Powder-coated lights are a cost-effective option with plenty of colour and finish choices, making them versatile for many designs. The coating provides protection, though it can chip or fade over time in harsh outdoor conditions. Perfect for customers seeking budget-friendly, stylish lighting without the premium longevity of copper or stainless steel.

Copper Light Fittings (Premium)

Copper develops a beautiful natural patina over time, changing from warm brown to green verdigris, giving each light a unique character. Extremely durable and corrosion-resistant, copper actually becomes more protected as it ages. Its timeless, elegant look makes it a statement material, perfect for customers who want a high-end fixture that gains character with age.

Stainless Steel Light Fittings (Premium)

Stainless steel offers a sleek, modern appearance that stays consistent over time. Highly resistant to rust, corrosion, and staining - especially marine-grade (316) stainless steel - it requires very little maintenance. Ideal for customers who want a long-lasting, contemporary look without the natural ageing process of copper.

Trade

Trade Customers Welcome

We’re pleased to offer generous discounts for trade customers across our full range of Hunza/LuxR outdoor lights. Whether you’re sourcing lighting for a single project or buying in larger quantities, you’ll benefit from excellent savings and quality products built to last.

Contact our team today to learn more about our trade discounts and how we can help with your next project.
