LuxR Modux Four Spike Spot With Glare Guard (Series Circuit) - IP68 LuxR

LuxR Modux Four Spike Spot With Glare Guard (Series Circuit) - IP68

£252.00
Flexible Financing Options Available
Delivery Time: 1–3 Working Days (in stock) or 3-5 Weeks (out of stock) - Check Availability

Notify me when back in stock

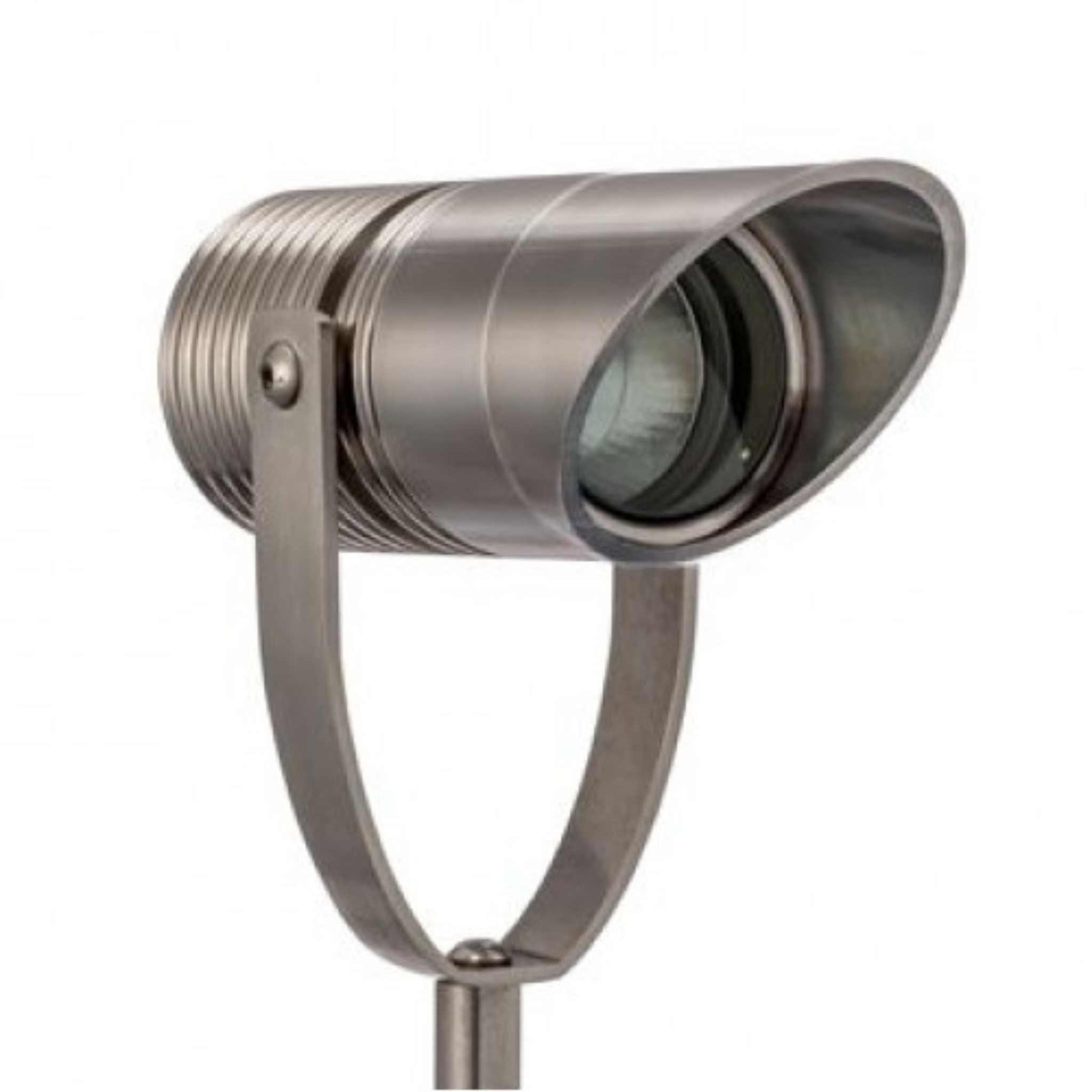

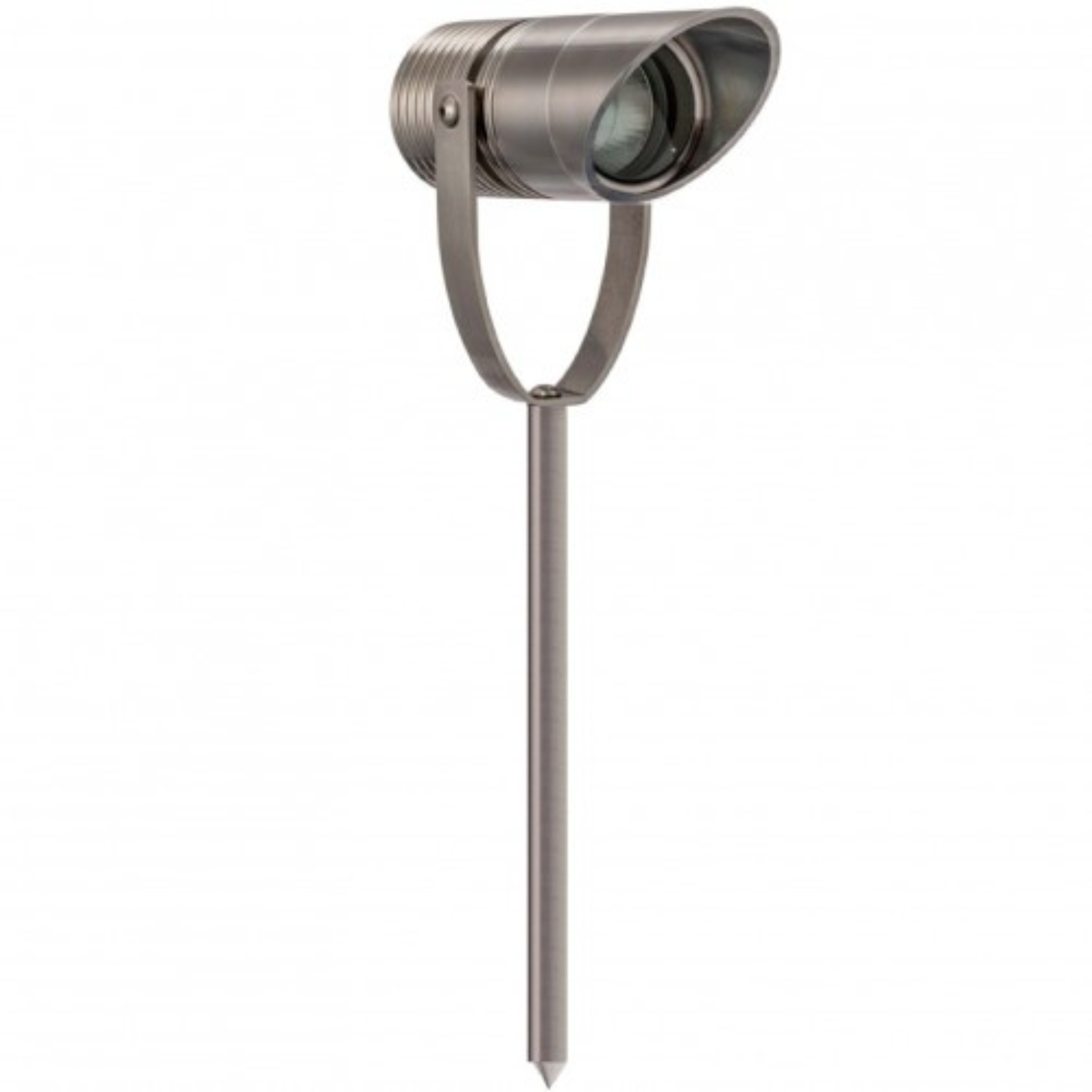

LuxR Modux Four Spike Spot with Glare Guard

The LuxR Modux Four Spike Spot with Glare Guard is a low-voltage outdoor spotlight, designed for controlled lighting of gardens, landscapes or architectural settings.

It's solid spike provides stability when installed into turf or soil, and features an integrated glare guard.

The modular design allows for LED and optic replacement, making the fixture serviceable and adaptable to all of your lighting needs.

Choose from 316 stainless steel, copper or powder-coated aluminium in a number of colours, all the most premium materials on the market sealed to IP68.

Key Features:

  • Dimmable low-voltage operation (700 mA constant current)

  • Replaceable Cree XHP-50 LED module, swappable optics (26°, 36°, 74°)

  • Integrated glare guard

  • Colour temperature options: 2700K, 3000K, 4000K (warm to neutral whites), or RGBW in stainless steel only

  • High efficacy: 90 lm/W delivered (unobstructed beam)

  • Fully sealed to IP68

  • Compatible with remote constant-current drivers

  • Warranty: 10 years on stainless steel / copper, 5 years on aluminium & electronics

Specifications

Specification Value / Options
Input Current 700mA
Forward Voltage (Vf) 6Vf
Power 4w max
Efficacy 90 lm/W delivered (unobstructed beam)
Colour Temperatures 2700K, 3000K, 4000K, RGBW (in stainless steel only)
CRI Ra 90 (for white light)
Beam Angles (FWHM) 26°, 36°, 74°
Lens Options Clear or Frosted
Standards / Ratings IP68, CE, UL676, UL1598, UL1838, UL2108
Light Engine Plug-in dimmable module with Cree XHP-50 LED
Driver Options Remote constant-current (700 mA)
LED Life Expectancy 50,000 hours
Description

LuxR Modux Four Spike Spot with Glare Guard

The LuxR Modux Four Spike Spot with Glare Guard is a low-voltage outdoor spotlight, designed for controlled lighting of gardens, landscapes or architectural settings.

It's solid spike provides stability when installed into turf or soil, and features an integrated glare guard.

The modular design allows for LED and optic replacement, making the fixture serviceable and adaptable to all of your lighting needs.

Choose from 316 stainless steel, copper or powder-coated aluminium in a number of colours, all the most premium materials on the market sealed to IP68.

Key Features:

  • Dimmable low-voltage operation (700 mA constant current)

  • Replaceable Cree XHP-50 LED module, swappable optics (26°, 36°, 74°)

  • Integrated glare guard

  • Colour temperature options: 2700K, 3000K, 4000K (warm to neutral whites), or RGBW in stainless steel only

  • High efficacy: 90 lm/W delivered (unobstructed beam)

  • Fully sealed to IP68

  • Compatible with remote constant-current drivers

  • Warranty: 10 years on stainless steel / copper, 5 years on aluminium & electronics

Specifications

Specification Value / Options
Input Current 700mA
Forward Voltage (Vf) 6Vf
Power 4w max
Efficacy 90 lm/W delivered (unobstructed beam)
Colour Temperatures 2700K, 3000K, 4000K, RGBW (in stainless steel only)
CRI Ra 90 (for white light)
Beam Angles (FWHM) 26°, 36°, 74°
Lens Options Clear or Frosted
Standards / Ratings IP68, CE, UL676, UL1598, UL1838, UL2108
Light Engine Plug-in dimmable module with Cree XHP-50 LED
Driver Options Remote constant-current (700 mA)
LED Life Expectancy 50,000 hours
Series vs Parallel

Series vs Parallel Circuits

When planning your outdoor lighting, it helps to understand how series and parallel circuits work, so you can pick the setup that suits your space.

What Are They?

Series circuits connect lights one after another along a single path, meaning the same current flows through each light.

A diagram showing how a series circuit works

Parallel circuits connect each light directly to the power source, so each operates independently. The type of circuit you choose affects brightness, maintenance, and overall layout.

A diagram showing how a parallel circuit works

Why Choose Series?

Series circuits are straightforward to install and need less wiring, making them a practical choice for many outdoor lighting setups. They provide a uniform glow across all lights and are easy to extend along a path or around a patio. With modern outdoor lights being highly reliable, interruptions are rare, meaning series circuits can offer a simple, efficient, and visually pleasing solution for most homes.

Why Choose Parallel?

Parallel circuits allow each light to operate independently, so if one fails, the rest continue to shine. They give consistent brightness across all bulbs and are flexible if you plan to move or add lights later. However, they can be slightly more complex to install and requires more cabling (legally required to use armoured cables).

Both types of circuits have their advantages, but for a clean, efficient setup that delivers a consistent glow, most homeowners find series circuits the better option.

Which Material To Choose?

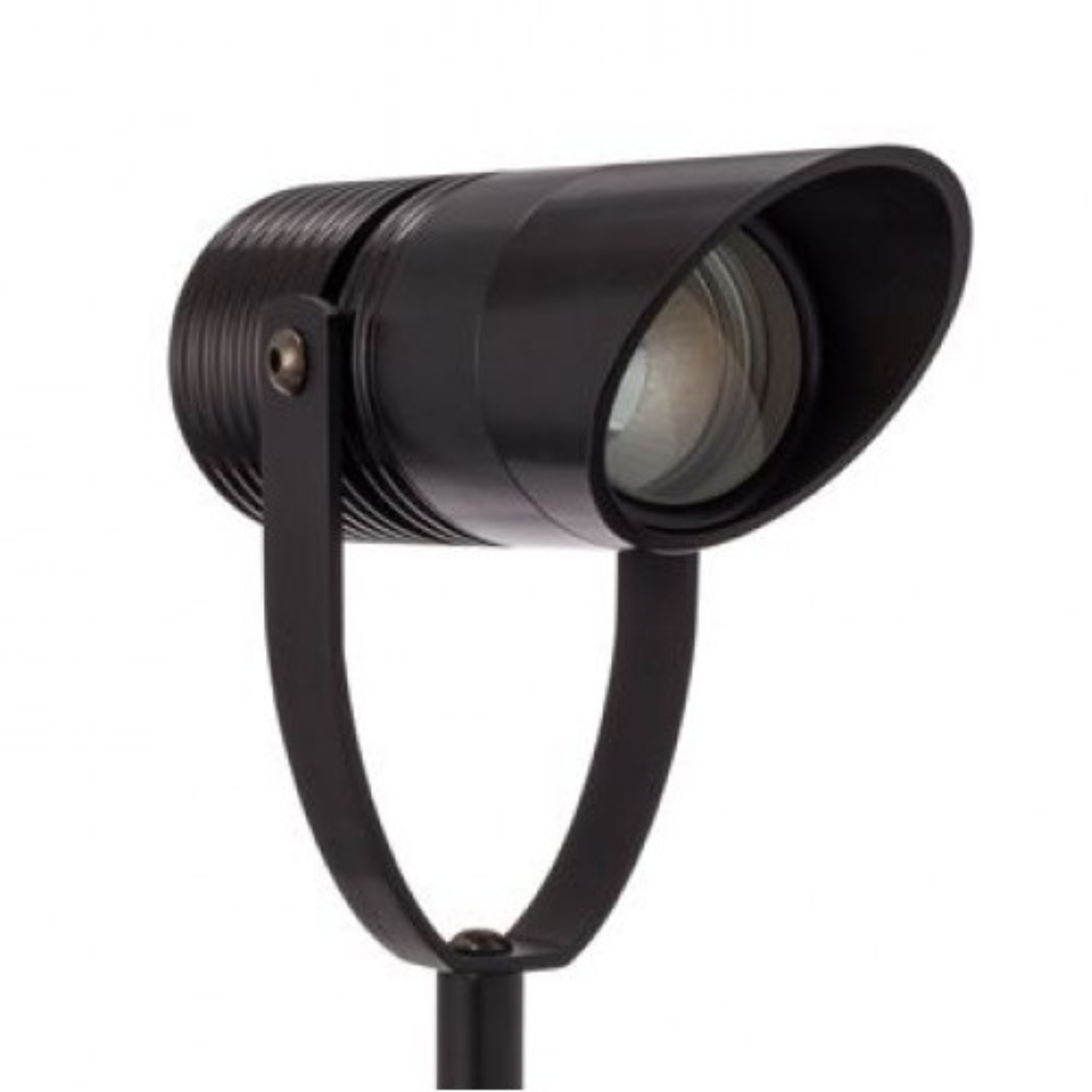

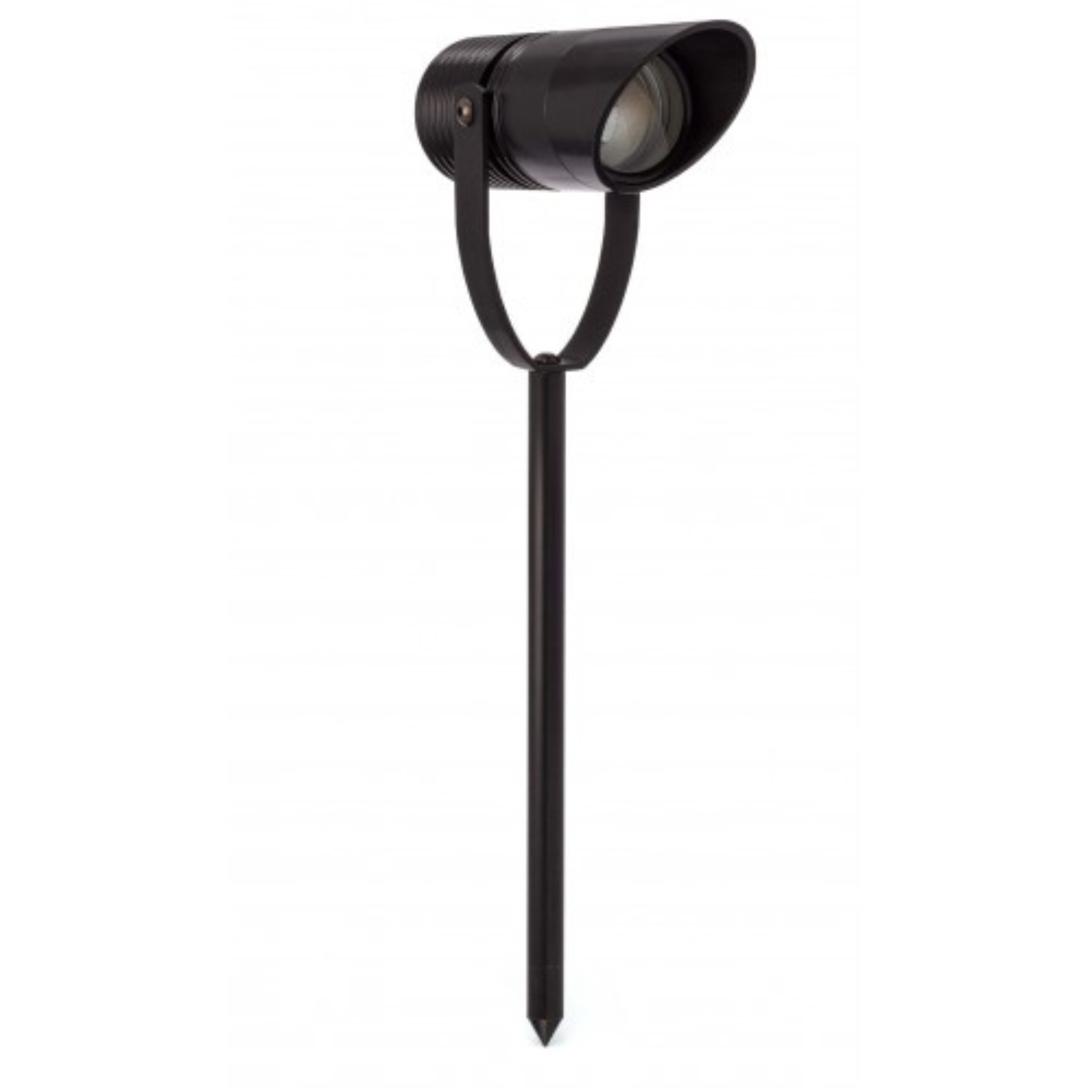

Powder-Coated Light Fittings (Standard)

Powder-coated lights are a cost-effective option with plenty of colour and finish choices, making them versatile for many designs. The coating provides protection, though it can chip or fade over time in harsh outdoor conditions. Perfect for customers seeking budget-friendly, stylish lighting without the premium longevity of copper or stainless steel.

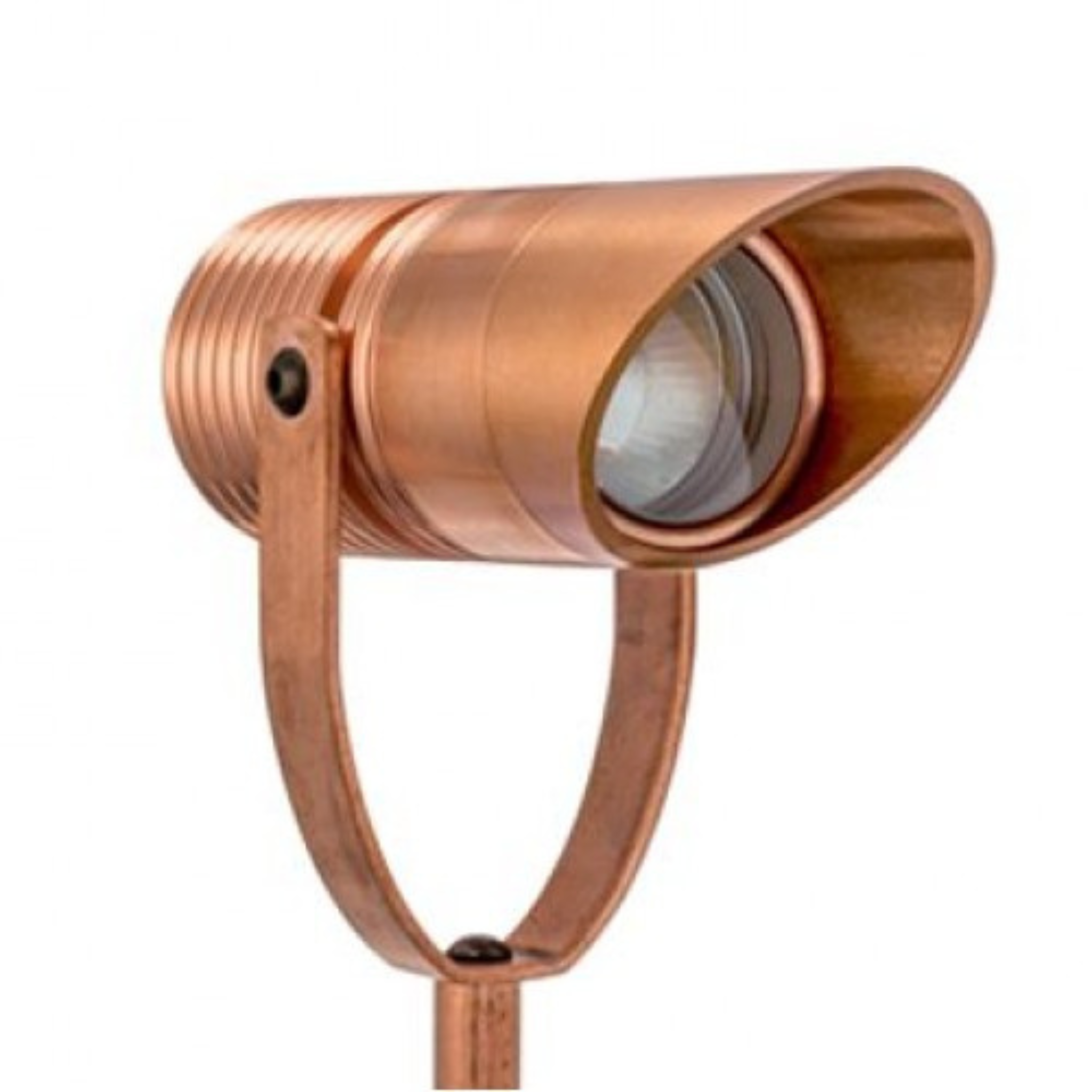

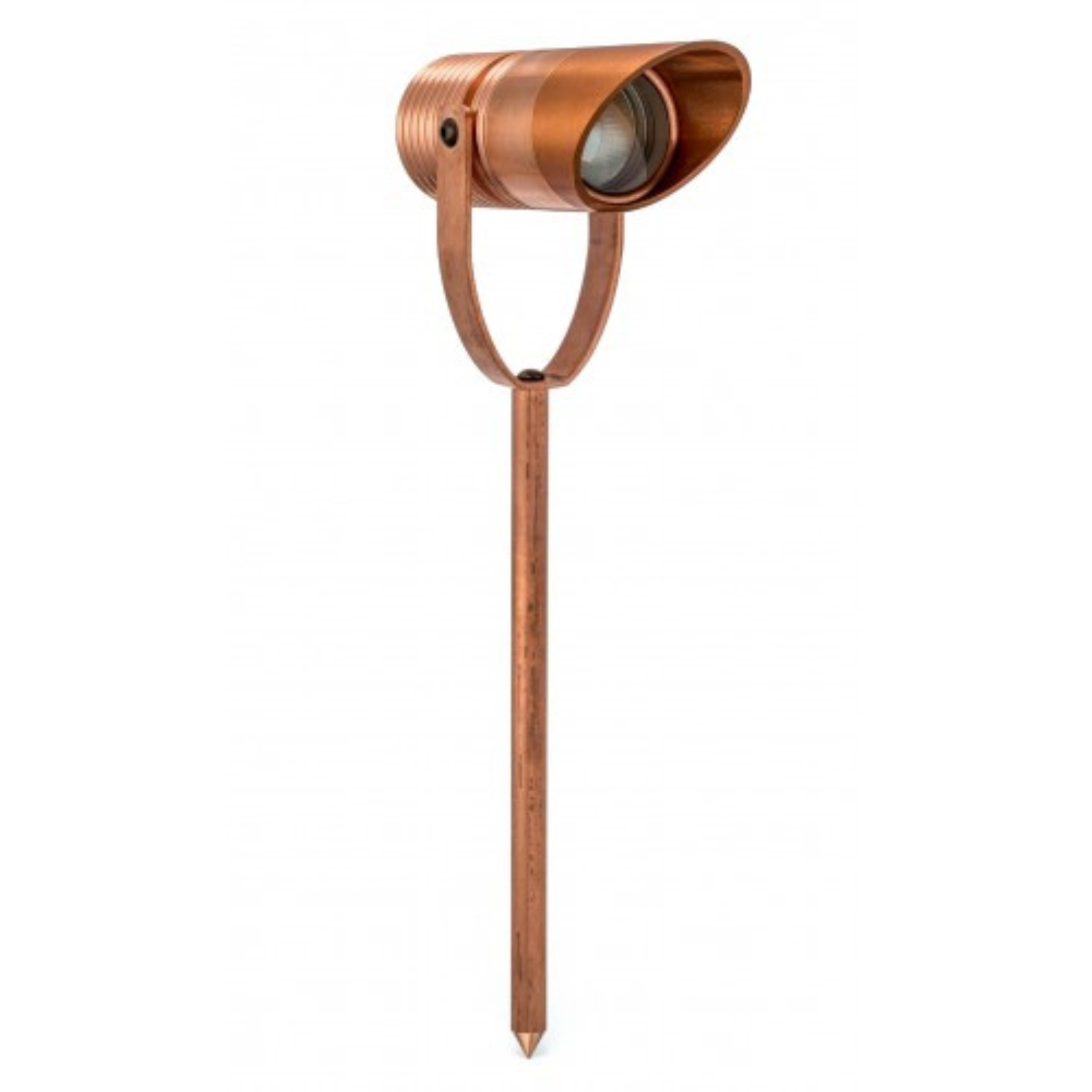

Copper Light Fittings (Premium)

Copper develops a beautiful natural patina over time, changing from warm brown to green verdigris, giving each light a unique character. Extremely durable and corrosion-resistant, copper actually becomes more protected as it ages. Its timeless, elegant look makes it a statement material, perfect for customers who want a high-end fixture that gains character with age.

Stainless Steel Light Fittings (Premium)

Stainless steel offers a sleek, modern appearance that stays consistent over time. Highly resistant to rust, corrosion, and staining - especially marine-grade (316) stainless steel - it requires very little maintenance. Ideal for customers who want a long-lasting, contemporary look without the natural ageing process of copper.

Trade

Trade Customers Welcome

We’re pleased to offer generous discounts for trade customers across our full range of Hunza/LuxR outdoor lights. Whether you’re sourcing lighting for a single project or buying in larger quantities, you’ll benefit from excellent savings and quality products built to last.

Contact our team today to learn more about our trade discounts and how we can help with your next project.
