LuxR Modux Four Spike Spot (Series Circuit) - 265mm LuxR

LuxR Modux Four Spike Spot (Series Circuit) - IP68

£219.00
Flexible Financing Options Available
Delivery Time: 1–3 Working Days (in stock) or 3-5 Weeks (out of stock) - Check Availability

Notify me when back in stock

LuxR M4 Spike Spot Light

The LuxR Modux Four Spike Spot is the most powerful fitting in the LuxR range, designed with a minimalistic look, but with high light output. It is ideal for lighting larger features, such as sculptures, large trees, etc.

Installation is simple - wire it up, push the metal spike into the ground and adjust the head for the desired lighting angle.

The fixture operates on low voltage and is fully dimmable, ensuring both safety and energy efficiency.

Like the rest of the LuxR lights, it has a modular design, so you can replace the LED module or optics, extending it's lifetime significantly.

Key Features

  • High output performance: approximately 348 lumens.

  • Available in marine-grade 316 stainless steel, natural copper, or powder-coated aluminium finishes.

  • IP68 rated: fully sealed and waterproof, suitable for installation in exposed outdoor areas.

  • Includes a replaceable Cree LED module and interchangeable optics (modular).

  • Beam and lens options: 26°, 36°, or 74° reflectors, with clear or frosted lenses.

  • Warranties: LED life expectancy of approximately 50,000 hours, with up to 10 years warranty on stainless steel and copper bodies, and 5 years on aluminium and electronics.

LuxR M4 Spike Spot Light Specifications

Specification Value / Options
Input Current 700 mA constant current
Forward Voltage 6 Vf
Power 4 W (max)
Efficacy 90 lm/W (delivered, unobstructed beam)
Colour Temperatures / LED Options 2700 K, 3000 K, 4000 K; RGBW (DMX option)
CRI Ra 90 (for white LEDs)
Beam Angles 26°, 36°, 74°
Lens Options Clear, Frosted (optional hexcell glare baffle)
Light Engine Cree XHP-50 4 W replaceable LED module
Driver Requirement Remote constant-current driver (700 mA) or integral 12 V AC / 24 V DC variants
Light Output ~348 lumens
Standards / Certifications IP68, CE, UL676, UL1598, UL1838, UL2108, LM79
LED Life Expectancy ~50,000 hours (L70)
Warranty 10 years (stainless steel/copper body), 5 years (aluminium body & electronics)
Description

LuxR M4 Spike Spot Light

The LuxR Modux Four Spike Spot is the most powerful fitting in the LuxR range, designed with a minimalistic look, but with high light output. It is ideal for lighting larger features, such as sculptures, large trees, etc.

Installation is simple - wire it up, push the metal spike into the ground and adjust the head for the desired lighting angle.

The fixture operates on low voltage and is fully dimmable, ensuring both safety and energy efficiency.

Like the rest of the LuxR lights, it has a modular design, so you can replace the LED module or optics, extending it's lifetime significantly.

Key Features

  • High output performance: approximately 348 lumens.

  • Available in marine-grade 316 stainless steel, natural copper, or powder-coated aluminium finishes.

  • IP68 rated: fully sealed and waterproof, suitable for installation in exposed outdoor areas.

  • Includes a replaceable Cree LED module and interchangeable optics (modular).

  • Beam and lens options: 26°, 36°, or 74° reflectors, with clear or frosted lenses.

  • Warranties: LED life expectancy of approximately 50,000 hours, with up to 10 years warranty on stainless steel and copper bodies, and 5 years on aluminium and electronics.

LuxR M4 Spike Spot Light Specifications

Specification Value / Options
Input Current 700 mA constant current
Forward Voltage 6 Vf
Power 4 W (max)
Efficacy 90 lm/W (delivered, unobstructed beam)
Colour Temperatures / LED Options 2700 K, 3000 K, 4000 K; RGBW (DMX option)
CRI Ra 90 (for white LEDs)
Beam Angles 26°, 36°, 74°
Lens Options Clear, Frosted (optional hexcell glare baffle)
Light Engine Cree XHP-50 4 W replaceable LED module
Driver Requirement Remote constant-current driver (700 mA) or integral 12 V AC / 24 V DC variants
Light Output ~348 lumens
Standards / Certifications IP68, CE, UL676, UL1598, UL1838, UL2108, LM79
LED Life Expectancy ~50,000 hours (L70)
Warranty 10 years (stainless steel/copper body), 5 years (aluminium body & electronics)
Series vs Parallel

Series vs Parallel Circuits

When planning your outdoor lighting, it helps to understand how series and parallel circuits work, so you can pick the setup that suits your space.

What Are They?

Series circuits connect lights one after another along a single path, meaning the same current flows through each light.

A diagram showing how a series circuit works

Parallel circuits connect each light directly to the power source, so each operates independently. The type of circuit you choose affects brightness, maintenance, and overall layout.

A diagram showing how a parallel circuit works

Why Choose Series?

Series circuits are straightforward to install and need less wiring, making them a practical choice for many outdoor lighting setups. They provide a uniform glow across all lights and are easy to extend along a path or around a patio. With modern outdoor lights being highly reliable, interruptions are rare, meaning series circuits can offer a simple, efficient, and visually pleasing solution for most homes.

Why Choose Parallel?

Parallel circuits allow each light to operate independently, so if one fails, the rest continue to shine. They give consistent brightness across all bulbs and are flexible if you plan to move or add lights later. However, they can be slightly more complex to install and requires more cabling (legally required to use armoured cables).

Both types of circuits have their advantages, but for a clean, efficient setup that delivers a consistent glow, most homeowners find series circuits the better option.

Which Material To Choose?

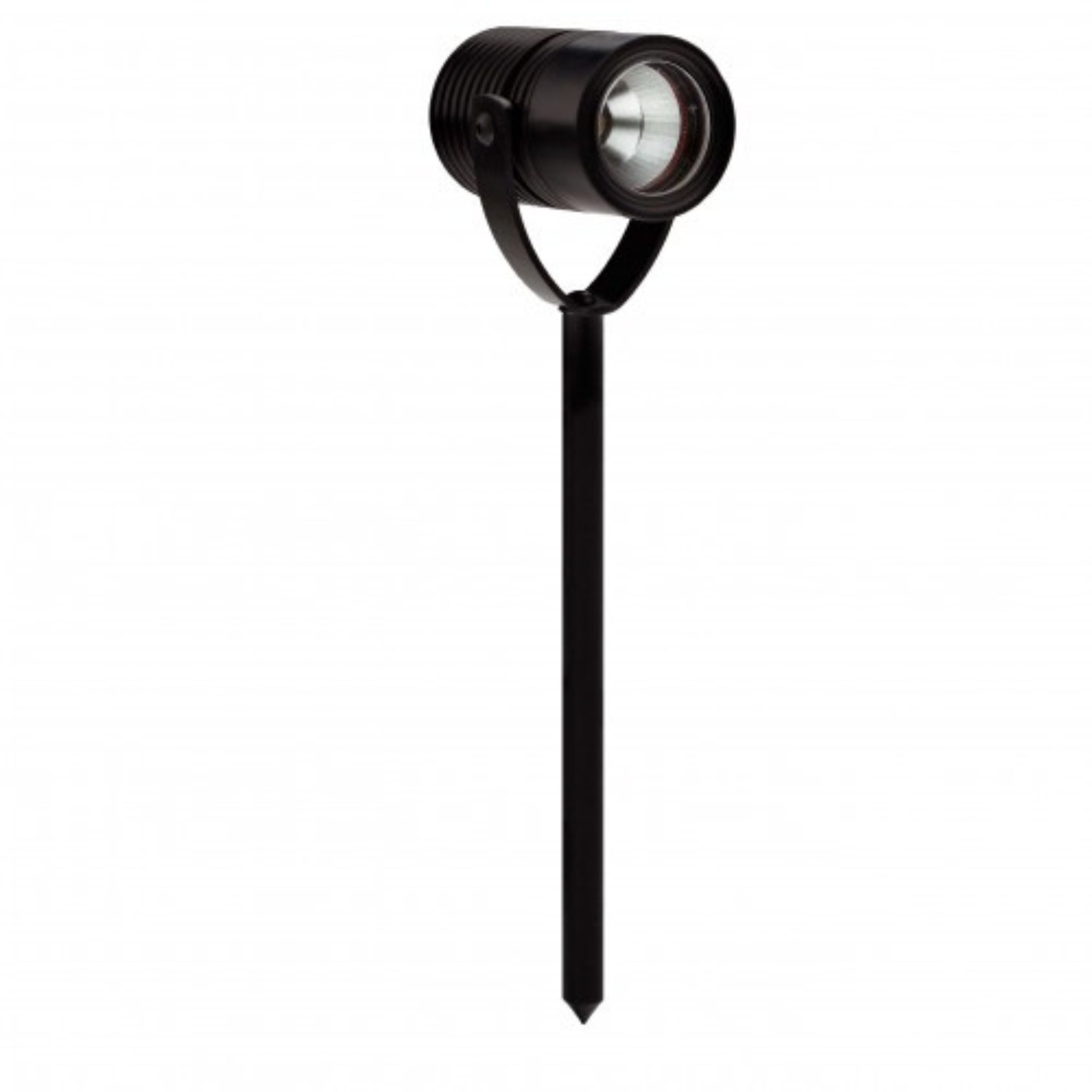

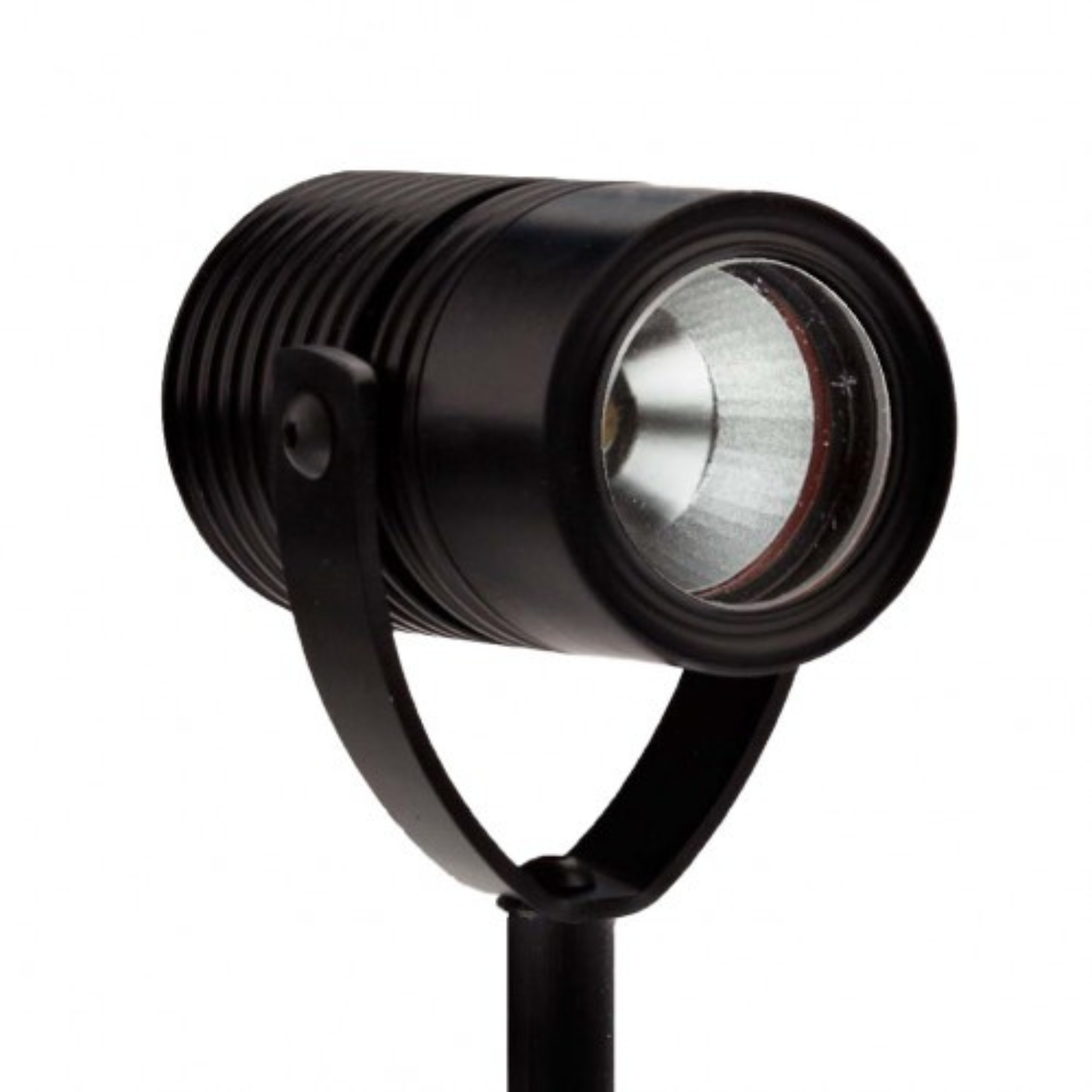

Powder-Coated Light Fittings (Standard)

Powder-coated lights are a cost-effective option with plenty of colour and finish choices, making them versatile for many designs. The coating provides protection, though it can chip or fade over time in harsh outdoor conditions. Perfect for customers seeking budget-friendly, stylish lighting without the premium longevity of copper or stainless steel.

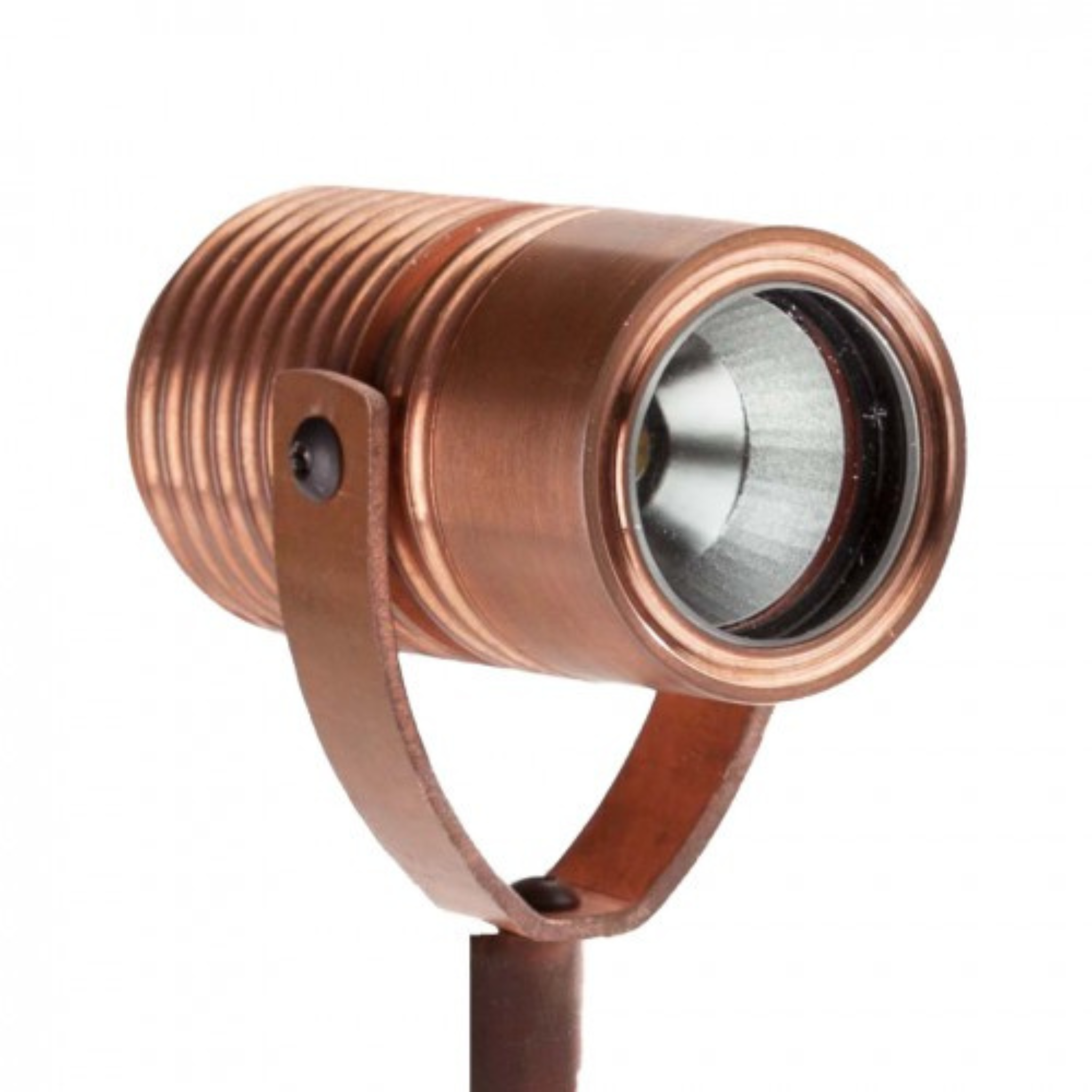

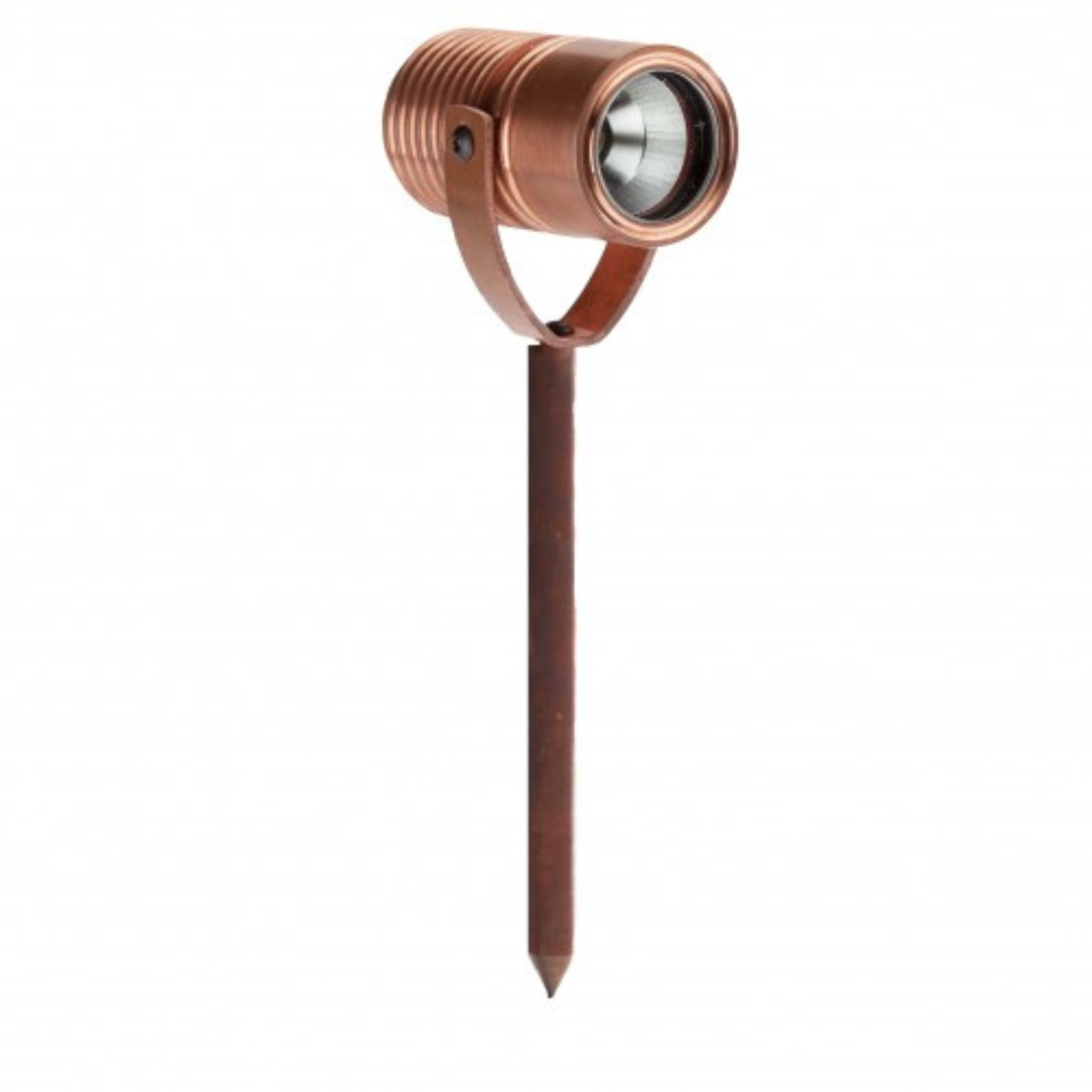

Copper Light Fittings (Premium)

Copper develops a beautiful natural patina over time, changing from warm brown to green verdigris, giving each light a unique character. Extremely durable and corrosion-resistant, copper actually becomes more protected as it ages. Its timeless, elegant look makes it a statement material, perfect for customers who want a high-end fixture that gains character with age.

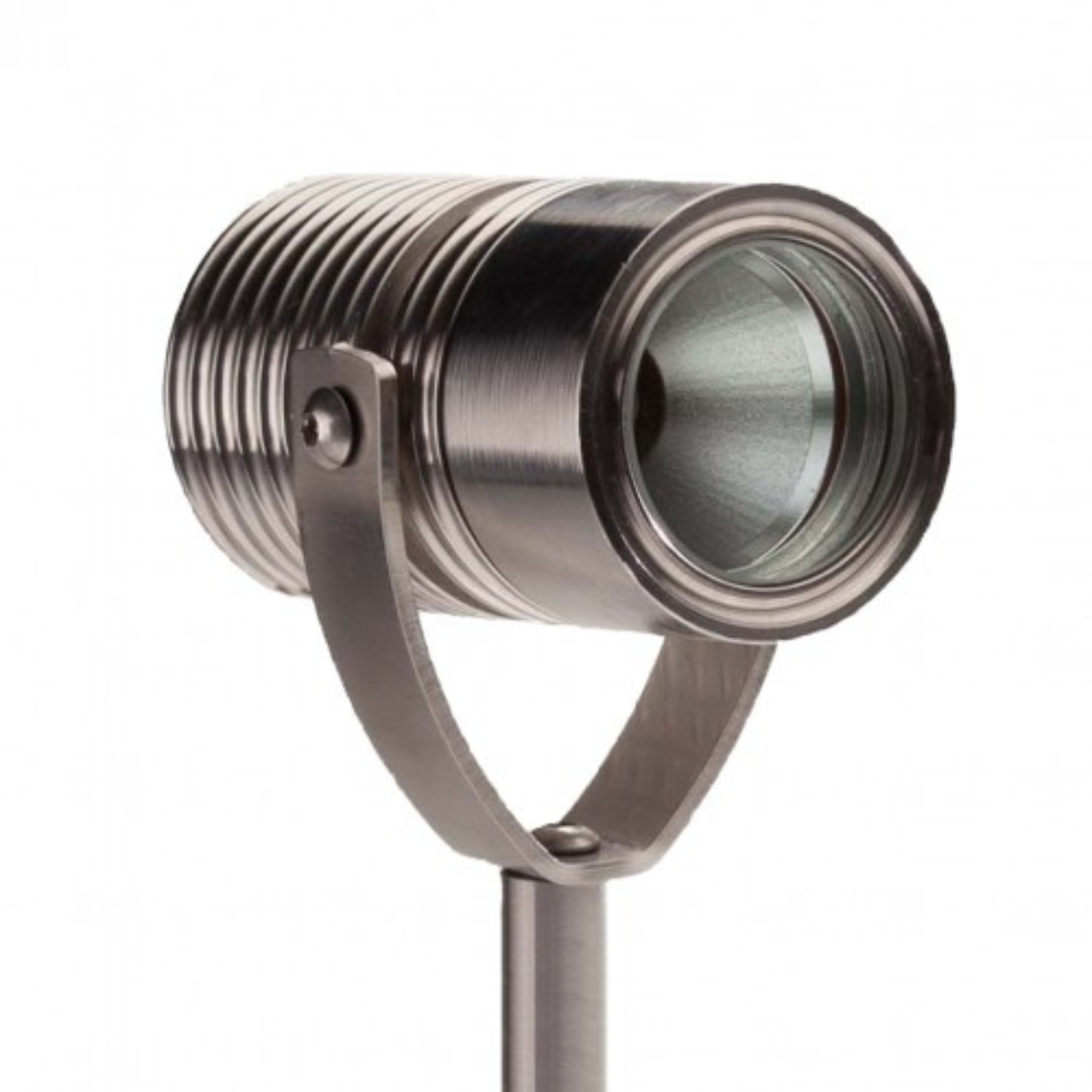

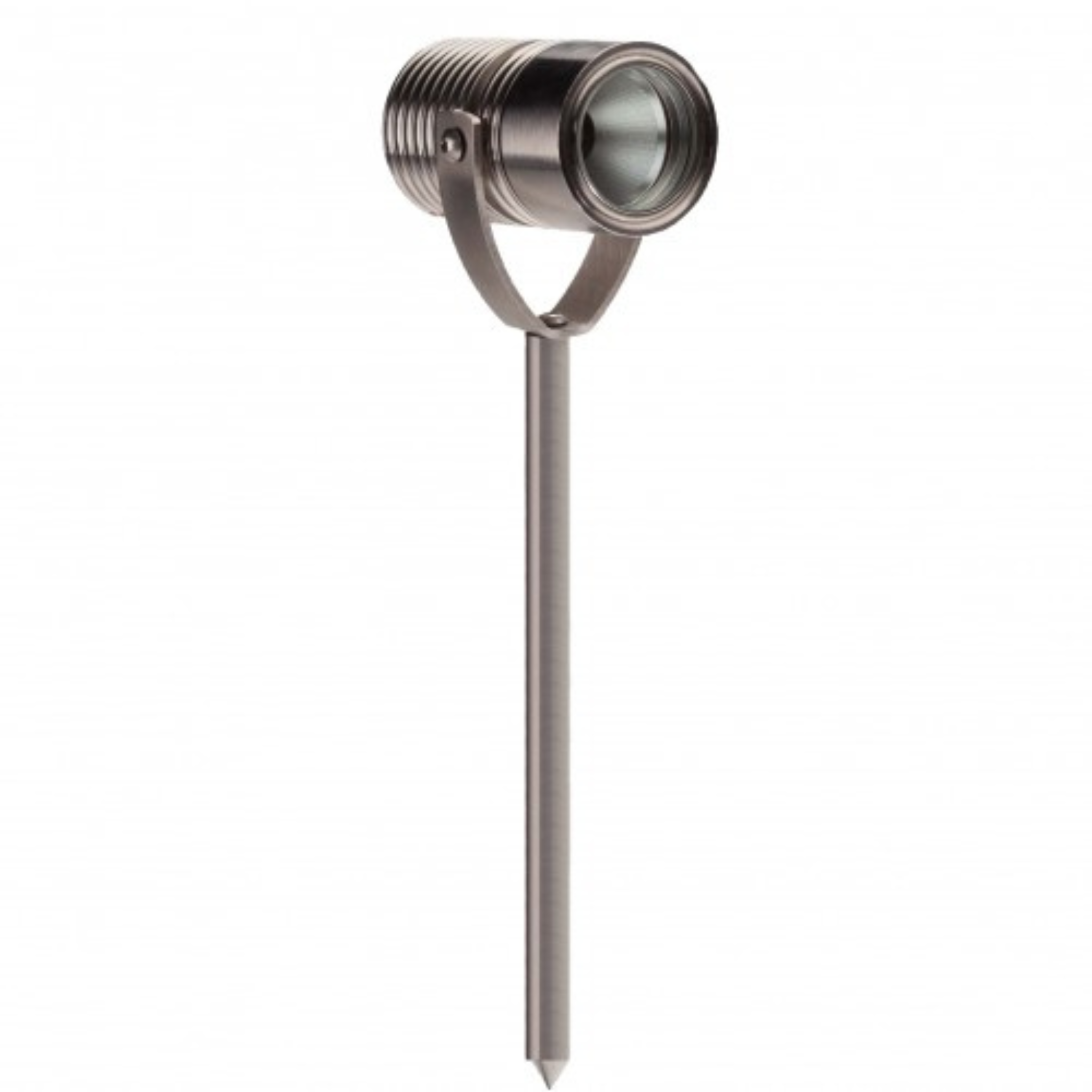

Stainless Steel Light Fittings (Premium)

Stainless steel offers a sleek, modern appearance that stays consistent over time. Highly resistant to rust, corrosion, and staining - especially marine-grade (316) stainless steel - it requires very little maintenance. Ideal for customers who want a long-lasting, contemporary look without the natural ageing process of copper.
