In-Lite Smart Hub-75 Transformer (12V) IN-LITE

In-Lite Smart Hub-75 Transformer (12V)

£229.00
Delivery Time: Within 1-3 Working Days

Notify me when back in stock

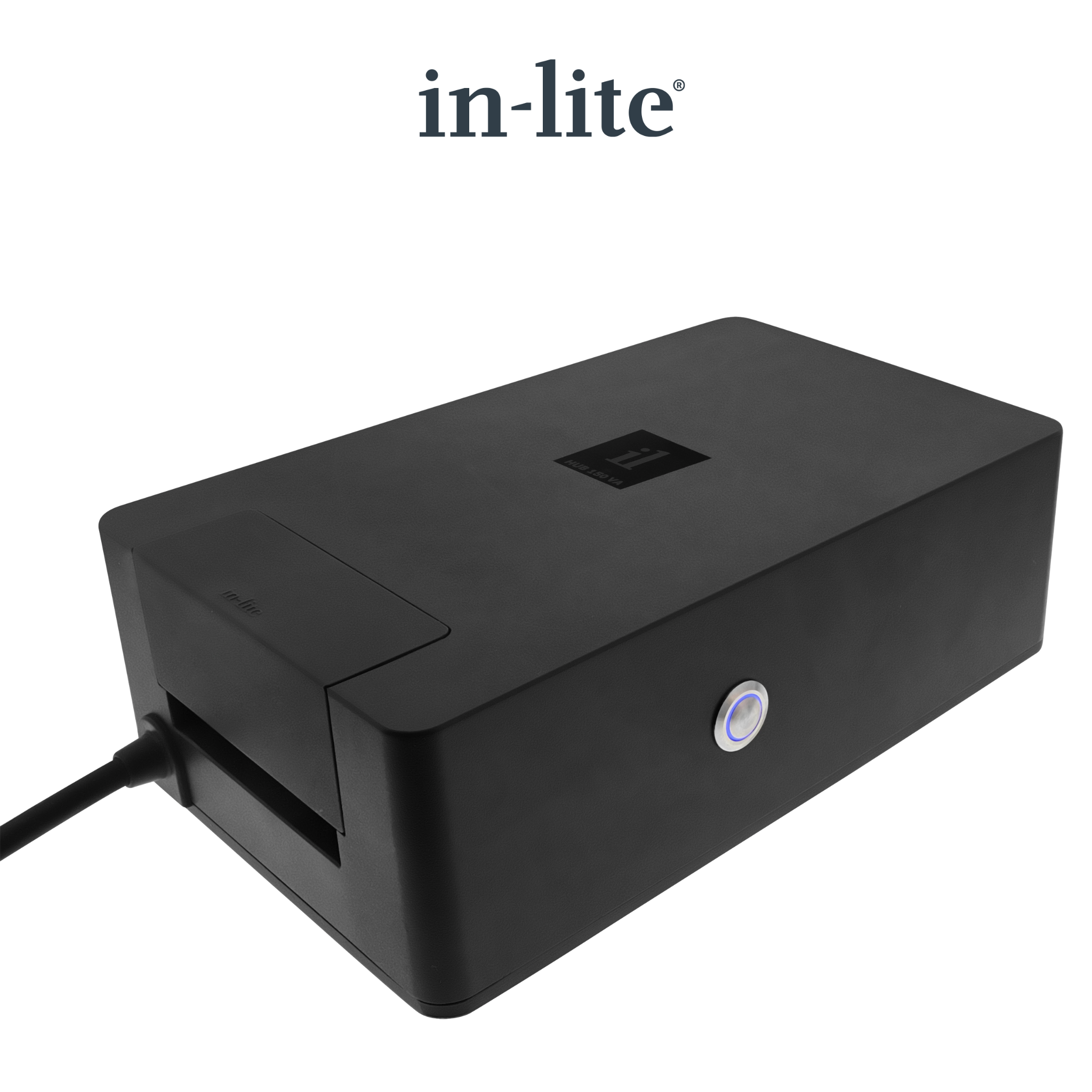

In Lite Smart Hub-75 12V Transformer

The In-Lite Smart Hub-75 combines intelligent control with reliable power delivery. This smart transformer allows you to control your garden lighting remotely, set schedules, and create dynamic lighting scenes - all from your smartphone.

Key Features

  • 75-watt smart transformer with app control
  • 230V AC input voltage
  • WiFi connectivity for remote control and scheduling
  • Create custom lighting scenes and timers
  • Compatible with all In-Lite 12V garden lighting products
  • Weatherproof design for outdoor installation
  • Energy monitoring and usage statistics
  • Works with smart home systems

In Lite Smart Hub-75 12V Transformer Specifications

Power Output 75W
Input Voltage 230V
Output Voltage 12V
Maximum Current 6.25A
Number of Outputs 6 independently controllable zones
Cable Capacity Up to 7 lights per output
Connectivity WiFi 802.11 b/g/n (2.4GHz)
Smart Features App control, scheduling, scenes, timers, energy monitoring
App Compatibility iOS 12+ and Android 8+
Smart Home Integration Amazon Alexa, Google Assistant compatible
IP Rating IP44 (weatherproof)
Operating Temperature -20°C to +40°C (-4°F to 104°F)
Housing Material UV-resistant polycarbonate with aluminium heat sink
Dimensions (H x W x D) 210mm x 170mm x 98mm
Weight 1.6kg
Protection Class Class II (double insulated)
Safety Features Overload protection, short-circuit protection, thermal cut-out, surge protection
Efficiency Rating >88%
Standby Power <1W
Warranty 5 years manufacturer warranty
Certifications CE, RoHS, UL, FCC compliant
Compatibility All In-Lite 12V lighting systems
Installation Type Wall-mounted or ground placement
Mounting Integrated mounting bracket included


Description

In Lite Smart Hub-75 12V Transformer

The In-Lite Smart Hub-75 combines intelligent control with reliable power delivery. This smart transformer allows you to control your garden lighting remotely, set schedules, and create dynamic lighting scenes - all from your smartphone.

Key Features

  • 75-watt smart transformer with app control
  • 230V AC input voltage
  • WiFi connectivity for remote control and scheduling
  • Create custom lighting scenes and timers
  • Compatible with all In-Lite 12V garden lighting products
  • Weatherproof design for outdoor installation
  • Energy monitoring and usage statistics
  • Works with smart home systems

In Lite Smart Hub-75 12V Transformer Specifications

Power Output 75W
Input Voltage 230V
Output Voltage 12V
Maximum Current 6.25A
Number of Outputs 6 independently controllable zones
Cable Capacity Up to 7 lights per output
Connectivity WiFi 802.11 b/g/n (2.4GHz)
Smart Features App control, scheduling, scenes, timers, energy monitoring
App Compatibility iOS 12+ and Android 8+
Smart Home Integration Amazon Alexa, Google Assistant compatible
IP Rating IP44 (weatherproof)
Operating Temperature -20°C to +40°C (-4°F to 104°F)
Housing Material UV-resistant polycarbonate with aluminium heat sink
Dimensions (H x W x D) 210mm x 170mm x 98mm
Weight 1.6kg
Protection Class Class II (double insulated)
Safety Features Overload protection, short-circuit protection, thermal cut-out, surge protection
Efficiency Rating >88%
Standby Power <1W
Warranty 5 years manufacturer warranty
Certifications CE, RoHS, UL, FCC compliant
Compatibility All In-Lite 12V lighting systems
Installation Type Wall-mounted or ground placement
Mounting Integrated mounting bracket included


Easy Installation

Installing an In-Lite Outdoor Lighting set up is as beginner friendly as it gets, even the most novice DIYer's will have no trouble at all!

The system is designed around low-voltage lighting, which means there’s no complicated wiring or specialist electrical knowledge required. With clear instructions and a plug-and-play design, most components simply click together, making it easy to plan and position your lights exactly where you want them.

Once your layout is decided, installation is quick and tidy. The cables can be discreetly laid just beneath the surface, while the fittings are designed to slot neatly into the ground, walls or decking. Because everything works as a complete system, connecting the transformer and testing the lights is simple and stress-free.

Best of all, an in-lite lighting setup is easy to adjust or expand over time. Whether you want to add extra lights or tweak the layout, the flexible design allows you to make changes without starting from scratch!

Here is a step by step guide on getting your In-Lite lighting arrangement set up:

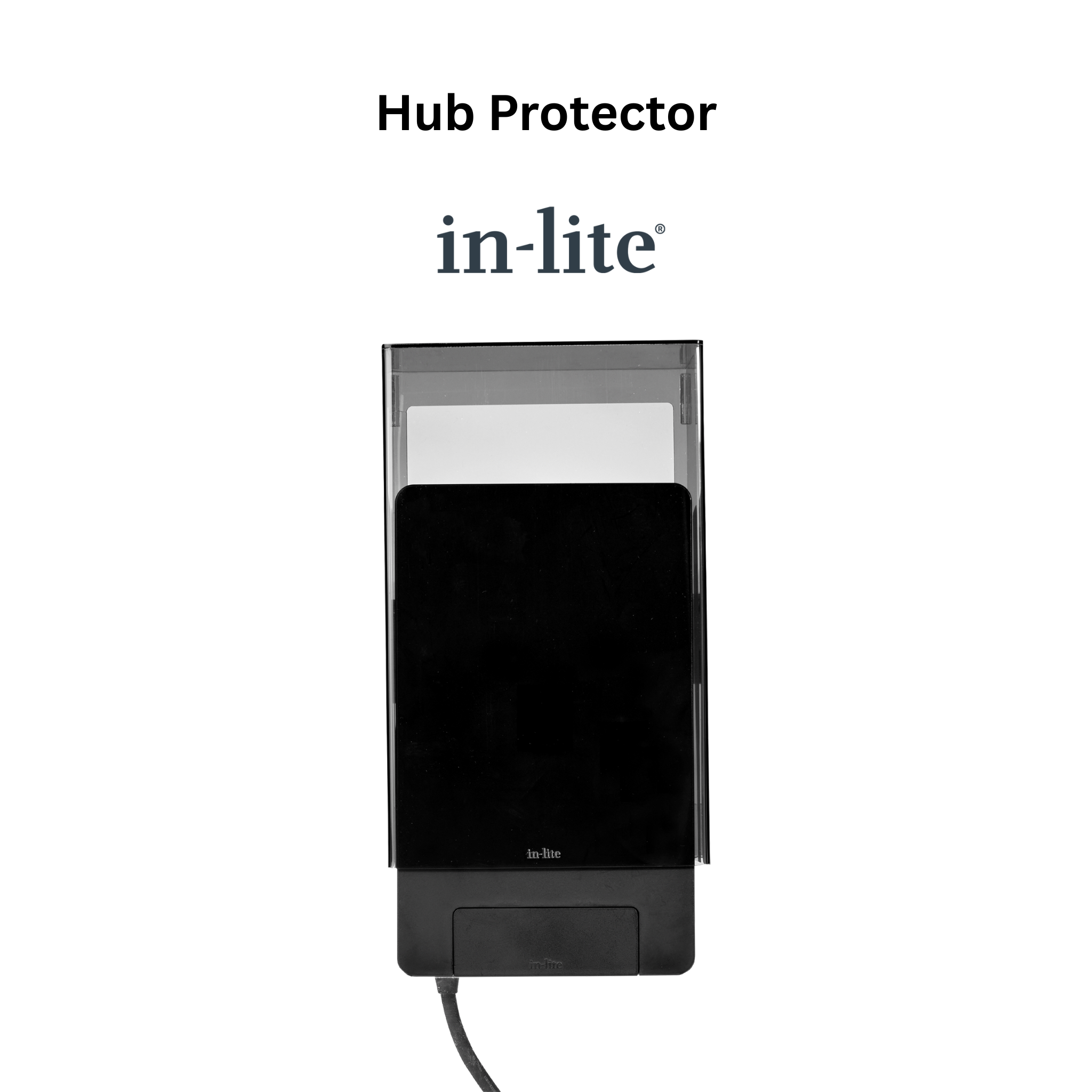

Step 1: Install the smart hub. This should be done in a sheltered dry place such as in a shed or under a canopy. If this is not possible, then install the transformer in the garden in combination with a smart hub protector.

Step 2: Roll out the inlight low voltage cables to all areas that need to be lit. It doesn't have to be buried deeply. A thin layer of soil is sufficient. Then strip the ends of the cables and simply place them in the smart hub.

Step 3: Place the fixtures in the garden according to your lighting plan.

Step 4: Connect each fixture to the main cable via the easy lock provided, you can easily connect them by twisting it shut. The easy lock is 100% safe and watertight.

Step 5 (Smart Hub Transformer required): download the Inlight app and set the schedules. A separate schedule can be set for every zone. You can choose to have them on at all times, to turn them on and off at specific times, or to switch them on at sunset.
