In-Lite Smart Hub-300 Transformer (12V) IN-LITE

In-Lite Smart Hub-300 Transformer (21V)

£688.00
Delivery Time: Within 1-3 Working Days

Notify me when back in stock

In Lite Smart Hub-300 21V Transformer

The In-Lite Smart Hub-300 is the flagship transformer for the most demanding garden lighting installations. With an impressive 300 watts of smart-controlled power, this professional-grade transformer can handle commercial-scale projects and extensive residential lighting systems.

Note: The 21V output works with all in-lite fixtures, other than the following:

  • FUSION
  • DB-LED
  • HYVE
  • LIV WALL

Key Features

  • 300-watt smart transformer for commercial and large residential projects
  • Advanced WiFi connectivity with professional app control
  • Create unlimited zones, scenes, and automated schedules
  • Compatible with most In-Lite 12V garden lighting products
  • Heavy-duty weatherproof construction for harsh conditions
  • Comprehensive energy monitoring and system diagnostics
  • Full smart home integration capabilities
  • Multiple independent output channels
  • Professional installation support

In Lite Smart Hub-300 12V Transformer Specifications

Power Output 300W
Input Voltage 230V
Output Voltage 21V
Maximum Current 25A
Number of Outputs 16 independently controllable zones
Cable Capacity Up to 20 lights per output
Connectivity WiFi 802.11 b/g/n/ac (2.4GHz & 5GHz), Bluetooth 5.0, Ethernet port
Smart Features App control, scheduling, scenes, timers, energy monitoring, diagnostics, firmware updates, cloud backup
App Compatibility iOS 12+ and Android 8+
Smart Home Integration Amazon Alexa, Google Assistant, Apple HomeKit, IFTTT compatible
Maximum Schedules 100 independent schedules
IP Rating IP65 (dust-tight and water-resistant)
Operating Temperature -30°C to +50°C (-22°F to 122°F)
Housing Material Marine-grade aluminium with powder coating
Dimensions (H x W x D) 280mm x 240mm x 130mm
Weight 3.5kg
Protection Class Class I (earthed)
Safety Features Overload protection, short-circuit protection, thermal cut-out, surge protection, individual zone protection, ground fault detection
Efficiency Rating >92%
Standby Power <1.5W
Warranty 5 years manufacturer warranty
Certifications CE, RoHS, UKCA, UL, FCC, Energy Star compliant
Compatibility All In-Lite 12V lighting systems
Installation Type Wall-mounted (professional installation recommended)
Mounting Heavy-duty mounting bracket and hardware included
Additional Features LCD display, manual override controls, backup battery support
Description

In Lite Smart Hub-300 21V Transformer

The In-Lite Smart Hub-300 is the flagship transformer for the most demanding garden lighting installations. With an impressive 300 watts of smart-controlled power, this professional-grade transformer can handle commercial-scale projects and extensive residential lighting systems.

Note: The 21V output works with all in-lite fixtures, other than the following:

  • FUSION
  • DB-LED
  • HYVE
  • LIV WALL

Key Features

  • 300-watt smart transformer for commercial and large residential projects
  • Advanced WiFi connectivity with professional app control
  • Create unlimited zones, scenes, and automated schedules
  • Compatible with most In-Lite 12V garden lighting products
  • Heavy-duty weatherproof construction for harsh conditions
  • Comprehensive energy monitoring and system diagnostics
  • Full smart home integration capabilities
  • Multiple independent output channels
  • Professional installation support

In Lite Smart Hub-300 12V Transformer Specifications

Power Output 300W
Input Voltage 230V
Output Voltage 21V
Maximum Current 25A
Number of Outputs 16 independently controllable zones
Cable Capacity Up to 20 lights per output
Connectivity WiFi 802.11 b/g/n/ac (2.4GHz & 5GHz), Bluetooth 5.0, Ethernet port
Smart Features App control, scheduling, scenes, timers, energy monitoring, diagnostics, firmware updates, cloud backup
App Compatibility iOS 12+ and Android 8+
Smart Home Integration Amazon Alexa, Google Assistant, Apple HomeKit, IFTTT compatible
Maximum Schedules 100 independent schedules
IP Rating IP65 (dust-tight and water-resistant)
Operating Temperature -30°C to +50°C (-22°F to 122°F)
Housing Material Marine-grade aluminium with powder coating
Dimensions (H x W x D) 280mm x 240mm x 130mm
Weight 3.5kg
Protection Class Class I (earthed)
Safety Features Overload protection, short-circuit protection, thermal cut-out, surge protection, individual zone protection, ground fault detection
Efficiency Rating >92%
Standby Power <1.5W
Warranty 5 years manufacturer warranty
Certifications CE, RoHS, UKCA, UL, FCC, Energy Star compliant
Compatibility All In-Lite 12V lighting systems
Installation Type Wall-mounted (professional installation recommended)
Mounting Heavy-duty mounting bracket and hardware included
Additional Features LCD display, manual override controls, backup battery support
Easy Installation

Installing an In-Lite Outdoor Lighting set up is as beginner friendly as it gets, even the most novice DIYer's will have no trouble at all!

The system is designed around low-voltage lighting, which means there’s no complicated wiring or specialist electrical knowledge required. With clear instructions and a plug-and-play design, most components simply click together, making it easy to plan and position your lights exactly where you want them.

Once your layout is decided, installation is quick and tidy. The cables can be discreetly laid just beneath the surface, while the fittings are designed to slot neatly into the ground, walls or decking. Because everything works as a complete system, connecting the transformer and testing the lights is simple and stress-free.

Best of all, an in-lite lighting setup is easy to adjust or expand over time. Whether you want to add extra lights or tweak the layout, the flexible design allows you to make changes without starting from scratch!

Here is a step by step guide on getting your In-Lite lighting arrangement set up:

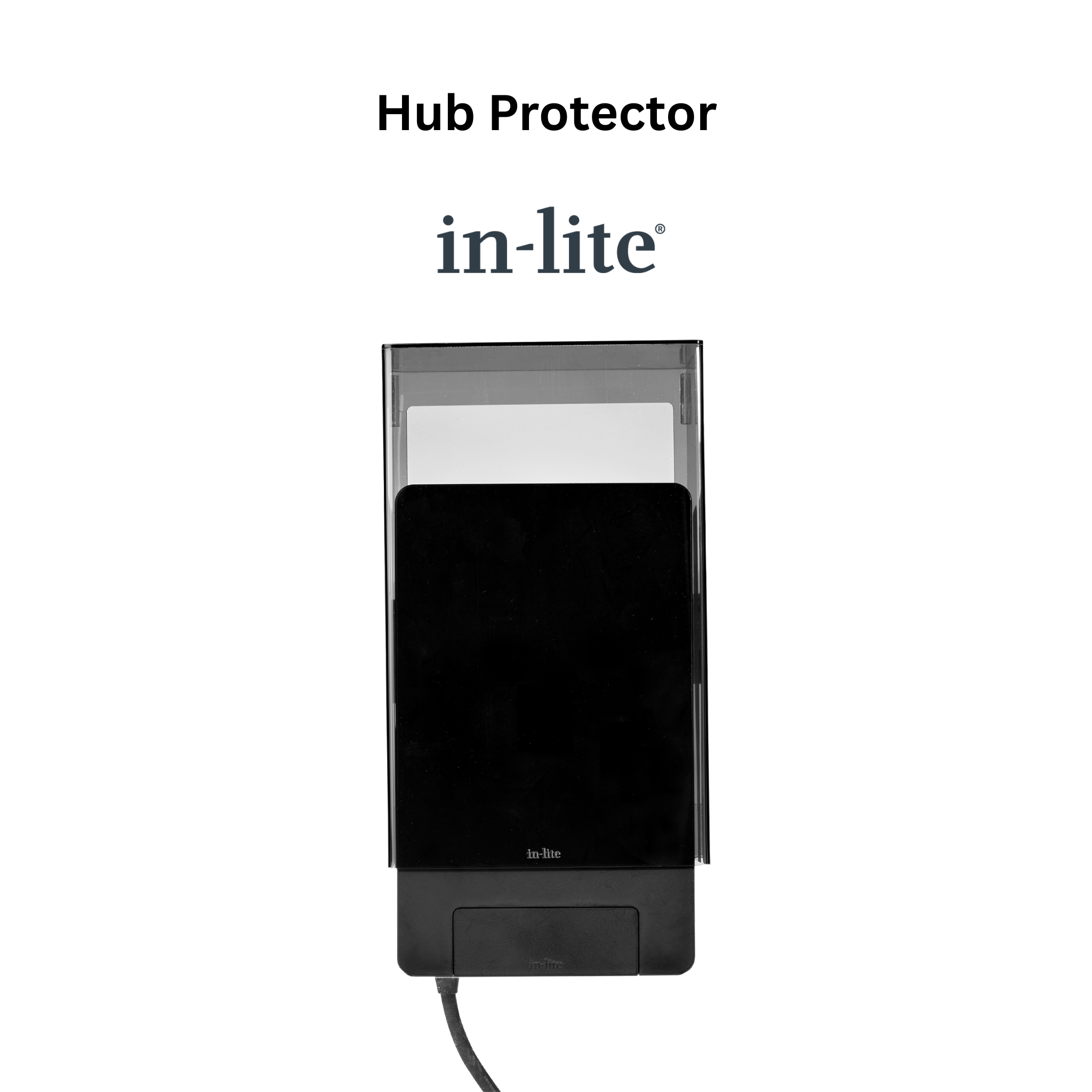

Step 1: Install the smart hub. This should be done in a sheltered dry place such as in a shed or under a canopy. If this is not possible, then install the transformer in the garden in combination with a smart hub protector.

Step 2: Roll out the inlight low voltage cables to all areas that need to be lit. It doesn't have to be buried deeply. A thin layer of soil is sufficient. Then strip the ends of the cables and simply place them in the smart hub.

Step 3: Place the fixtures in the garden according to your lighting plan.

Step 4: Connect each fixture to the main cable via the easy lock provided, you can easily connect them by twisting it shut. The easy lock is 100% safe and watertight.

Step 5 (Smart Hub Transformer required): download the Inlight app and set the schedules. A separate schedule can be set for every zone. You can choose to have them on at all times, to turn them on and off at specific times, or to switch them on at sunset.
