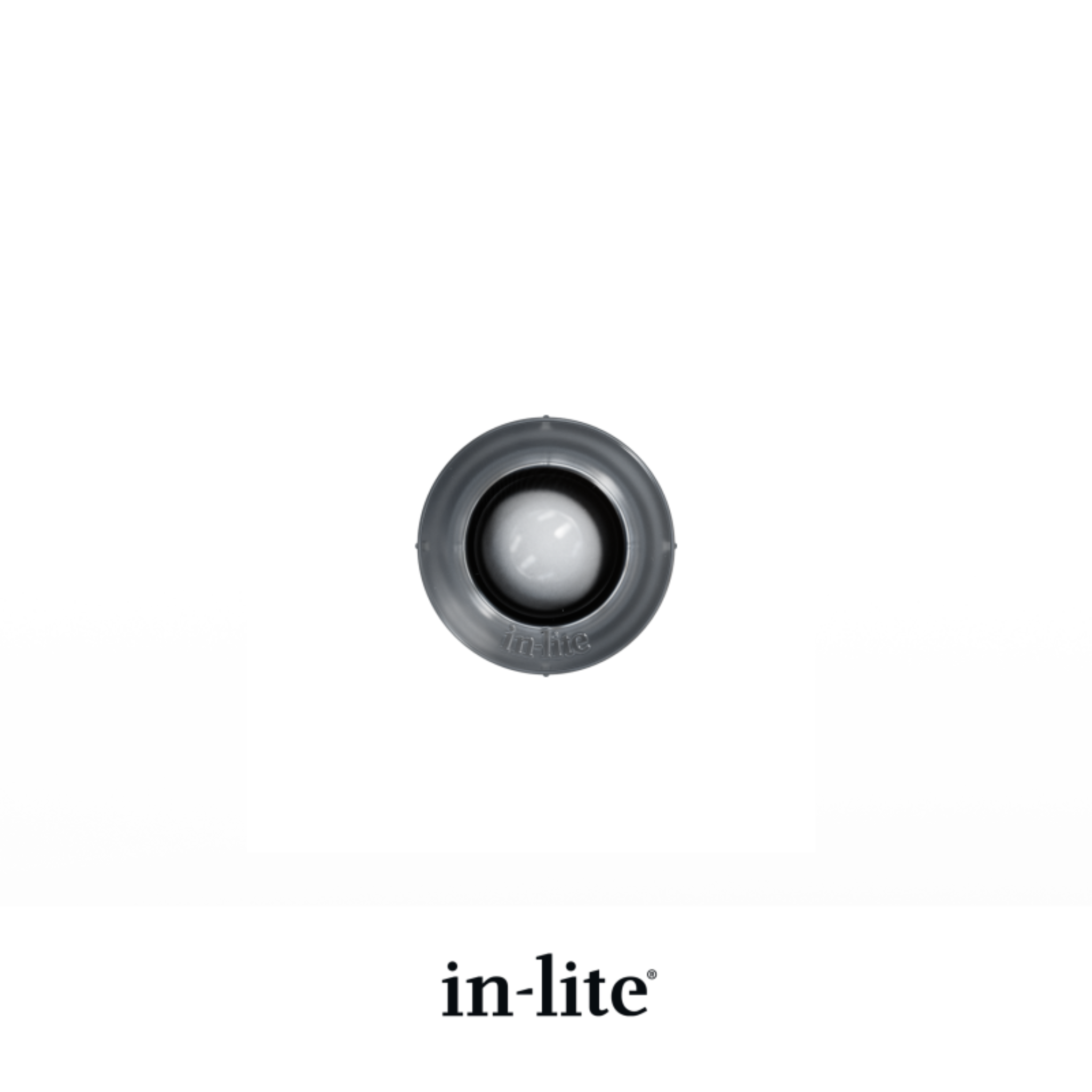

In-Lite DOT 22 Trimless Frosted Recessed Light - Ø22mm IN-LITE

In-Lite DOT 22 Trimless Frosted Recessed Light - Ø22mm

£61.00
Delivery Time: 1–3 Working Days (in stock) or 3-5 Weeks (out of stock) - Check Availability

Notify me when back in stock

IN-LITE DOT 22 Trimless Frosted Recessed Light - Ø22mm

DOT 22 Trimless is for when you want lighting without seeing the fitting. It sits completely flush, leaving just a soft circle of light behind.

It's perfect for modern patios, porcelain paving and clean-lined decking where bulky fittings would spoil the look.

The frosted lens keeps the light smooth and comfortable, while the compact 22mm size makes it incredibly discreet.

Small detail. Big difference.

Key Features

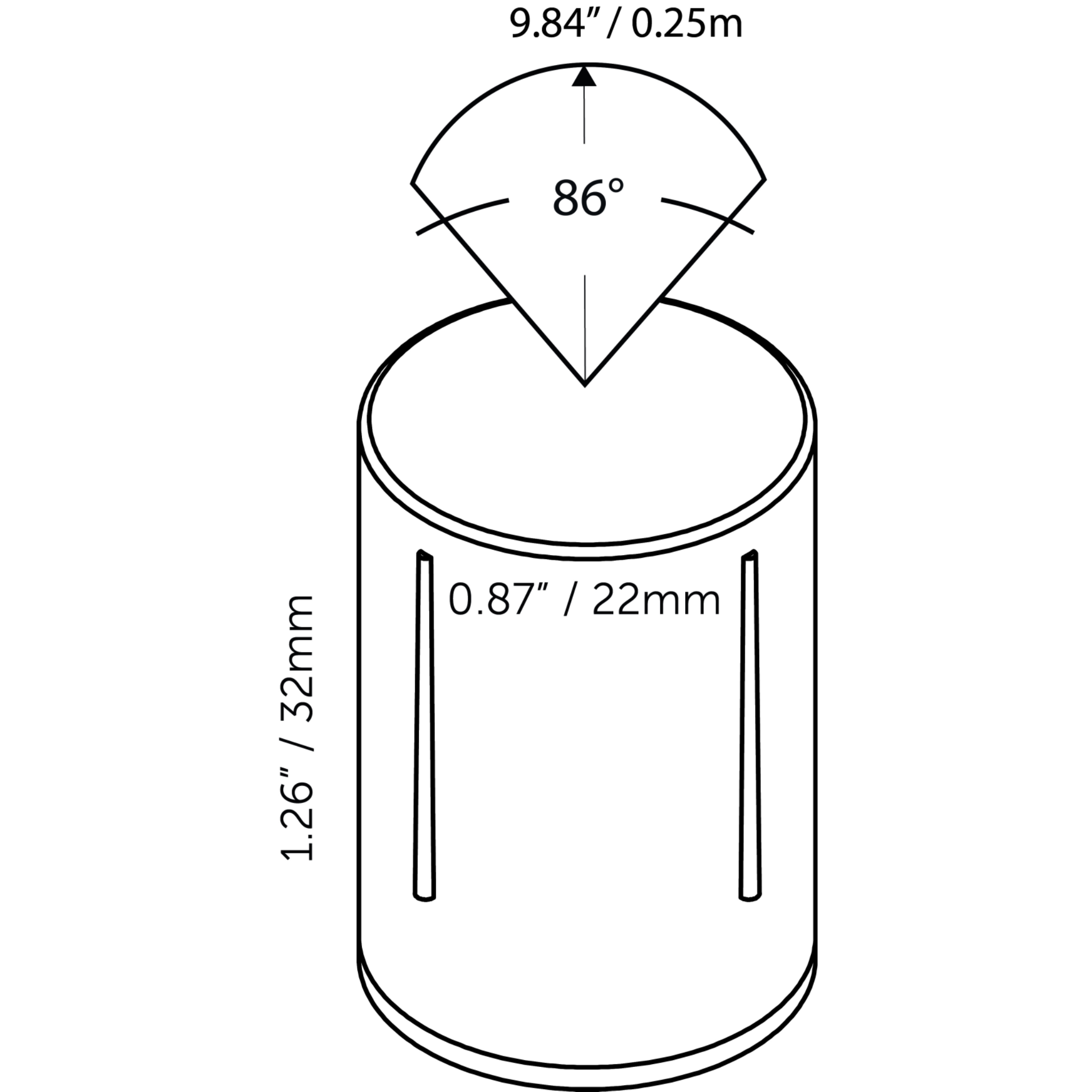

  • Ultra-compact 22mm trimless design
  • Frosted lens for soft diffusion
  • Clean flush finish
  • Ideal for contemporary paving and decking
  • Discreet step and edge lighting
  • Compatible with in-lite 12V system

Technical Specifications

Specification Detail
Beam Angle Diffused
Cable Length 0.6m
Connection Type Push Fit
CRI Rating 90
Guarantee 5 Years
IP Rating IP67
Lamp Life 25,000h
Light Colour (Kelvin) 3000k
Lumen Output 20 lm
Material Polycarbonate
Power Consumption 0.5W
Power Source 12v Transformer
Type of Light Recessed Light
VA Load Rating 0.5 VA
Description

IN-LITE DOT 22 Trimless Frosted Recessed Light - Ø22mm

DOT 22 Trimless is for when you want lighting without seeing the fitting. It sits completely flush, leaving just a soft circle of light behind.

It's perfect for modern patios, porcelain paving and clean-lined decking where bulky fittings would spoil the look.

The frosted lens keeps the light smooth and comfortable, while the compact 22mm size makes it incredibly discreet.

Small detail. Big difference.

Key Features

  • Ultra-compact 22mm trimless design
  • Frosted lens for soft diffusion
  • Clean flush finish
  • Ideal for contemporary paving and decking
  • Discreet step and edge lighting
  • Compatible with in-lite 12V system

Technical Specifications

Specification Detail
Beam Angle Diffused
Cable Length 0.6m
Connection Type Push Fit
CRI Rating 90
Guarantee 5 Years
IP Rating IP67
Lamp Life 25,000h
Light Colour (Kelvin) 3000k
Lumen Output 20 lm
Material Polycarbonate
Power Consumption 0.5W
Power Source 12v Transformer
Type of Light Recessed Light
VA Load Rating 0.5 VA
Easy Installation

Installing an In-Lite Outdoor Lighting set up is as beginner friendly as it gets, even the most novice DIYer's will have no trouble at all!

The system is designed around low-voltage lighting, which means there’s no complicated wiring or specialist electrical knowledge required. With clear instructions and a plug-and-play design, most components simply click together, making it easy to plan and position your lights exactly where you want them.

Once your layout is decided, installation is quick and tidy. The cables can be discreetly laid just beneath the surface, while the fittings are designed to slot neatly into the ground, walls or decking. Because everything works as a complete system, connecting the transformer and testing the lights is simple and stress-free.

Best of all, an in-lite lighting setup is easy to adjust or expand over time. Whether you want to add extra lights or tweak the layout, the flexible design allows you to make changes without starting from scratch!

Here is a step by step guide on getting your In-Lite lighting arrangement set up:

Step 1: Install the smart hub. This should be done in a sheltered dry place such as in a shed or under a canopy. If this is not possible, then install the transformer in the garden in combination with a smart hub protector.

Step 2: Roll out the inlight low voltage cables to all areas that need to be lit. It doesn't have to be buried deeply. A thin layer of soil is sufficient. Then strip the ends of the cables and simply place them in the smart hub.

Step 3: Place the fixtures in the garden according to your lighting plan.

Step 4: Connect each fixture to the main cable via the easy lock provided, you can easily connect them by twisting it shut. The easy lock is 100% safe and watertight.

Step 5 (Smart Hub Transformer required): download the Inlight app and set the schedules. A separate schedule can be set for every zone. You can choose to have them on at all times, to turn them on and off at specific times, or to switch them on at sunset.
