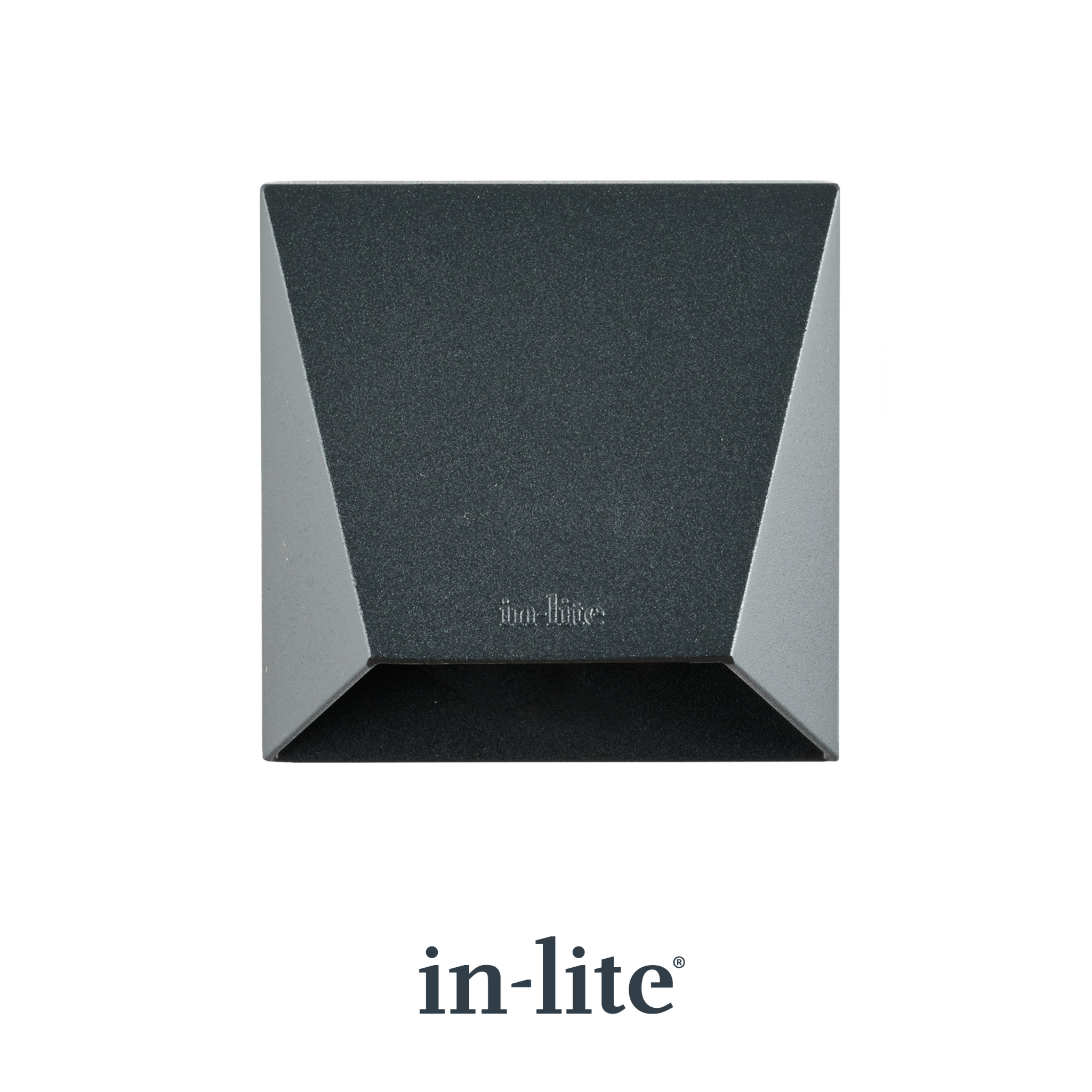

IN-LITE Wedge 12v Wall Light - Dark Grey

IN-LITE Wedge 12v Wall Light - Dark Grey

£86.00
Delivery Time: 1–3 Working Days (in stock) or 3-5 Weeks (out of stock) - Check Availability

Notify me when back in stock

IN-LITE Wedge Outdoor LED Wall Light

The in-lite Wedge is a versatile and stylish 12V outdoor wall light designed to cast soft downward light that elevates walls, fences, patios and driveways with warm ambience.

With a square profile and premium finish, this lighting solution blends into modern outdoor spaces while enhancing safety and visual appeal.

Built as part of the Wedge series, this luminaire delivers a wide, attractive downward light without glare, ideal for highlighting architectural features or creating atmospheric accent lighting along outdoor surfaces.

Supplied with an EASY-LOCK connector and 60cm cable, installation is quick and easy within a low-voltage in-lite lighting system.

Key Benefits:

  • Indirect Downward Illumination: Produces a welcoming warm white light that accentuates walls and outdoor surfaces.

  • Flexible Colour Options: Available in Dark Grey, White or Rosé Silver to suit different exterior styles.

  • Outdoor-Ready Build: Durable construction with an IP55 rating for reliable weather resistance.

  • Simple Installation: Supplied with EASY-LOCK connector and cable for fast connection to your garden lighting system.

  • Low Energy Consumption: Efficient LED design keeps power use to a minimum while providing attractive ambient light.

IN-LITE Wedge Outdoor LED Wall Light Specifications

Feature Specification
Brand in-lite
Product WEDGE
Article Number 10301780
Application Outdoor wall, fence, patio, canopy
Light Source Integrated LED
Voltage 12V low voltage
Power Consumption 1W
Net Luminous Flux 33lm
Colour Temperature 2800K (Warm White)
CRI (Colour Rendering Index) 94
Light Direction Downward, indirect
Beam Type Diffuse illumination
IP Rating IP55
Energy Label G
Efficiency 33lm/W
Cable Length 60cm (with EASY-LOCK)
Dimensions (W × H × D) 63mm × 100mm × 100mm

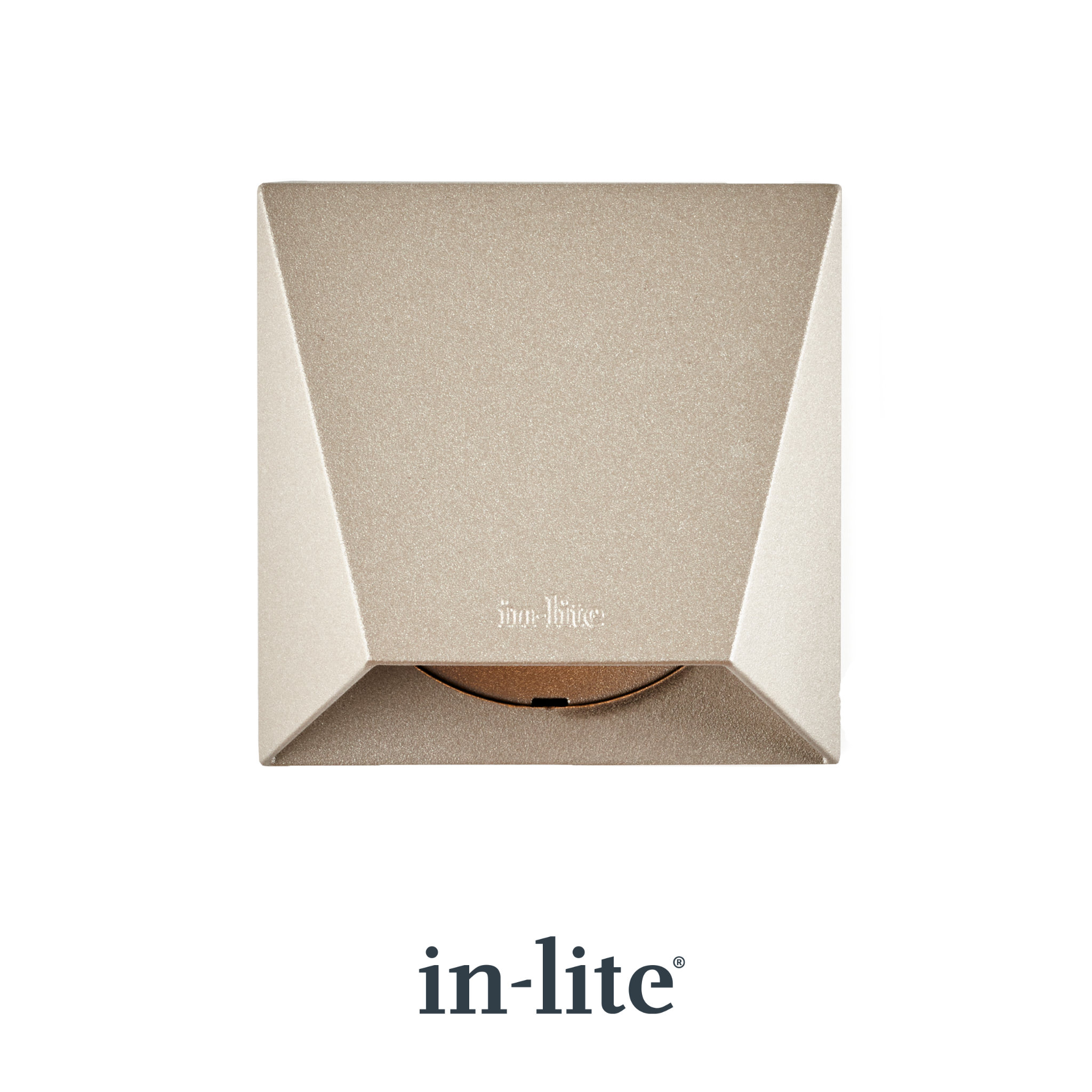

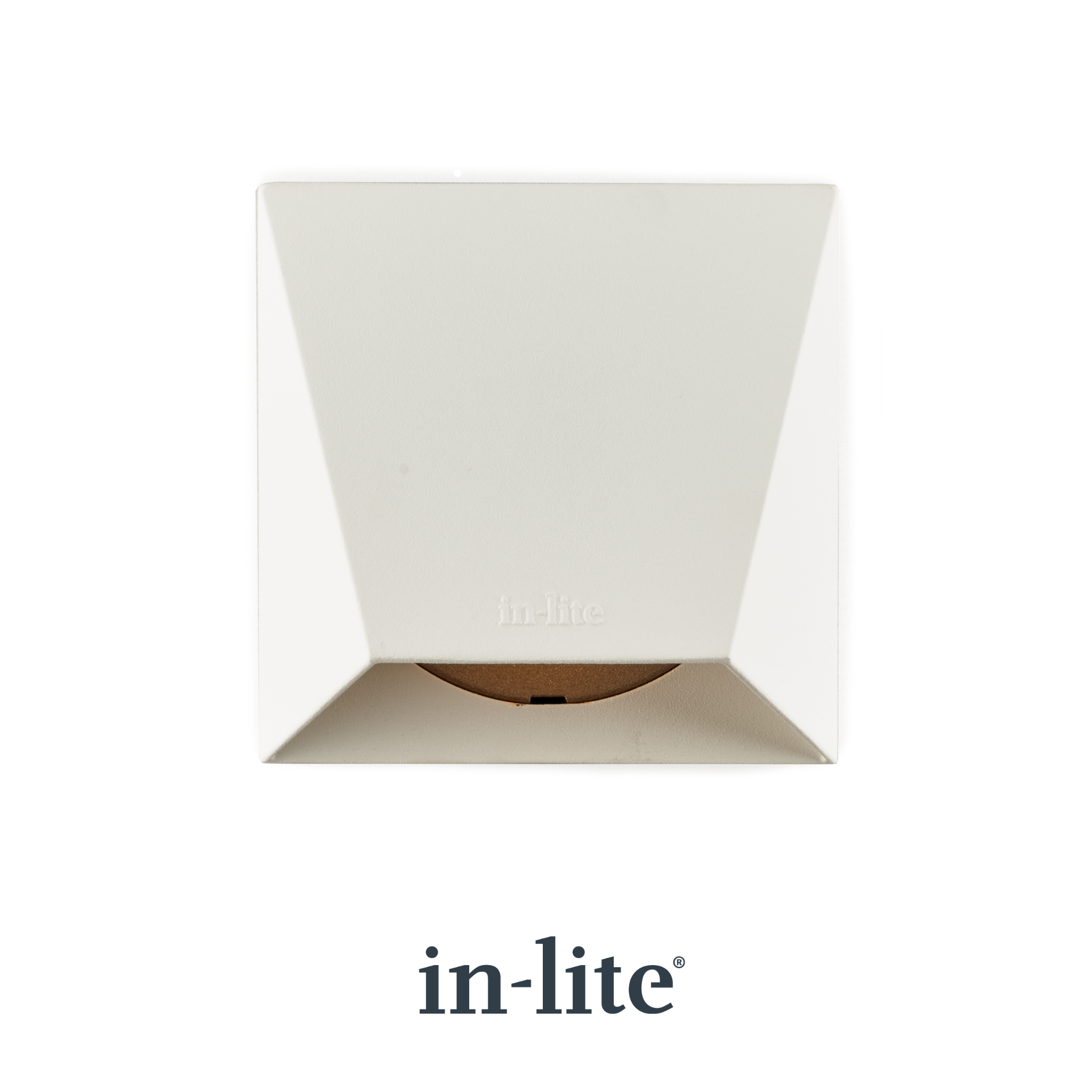

Housing Colours Dark Grey, White, Rosé Silver

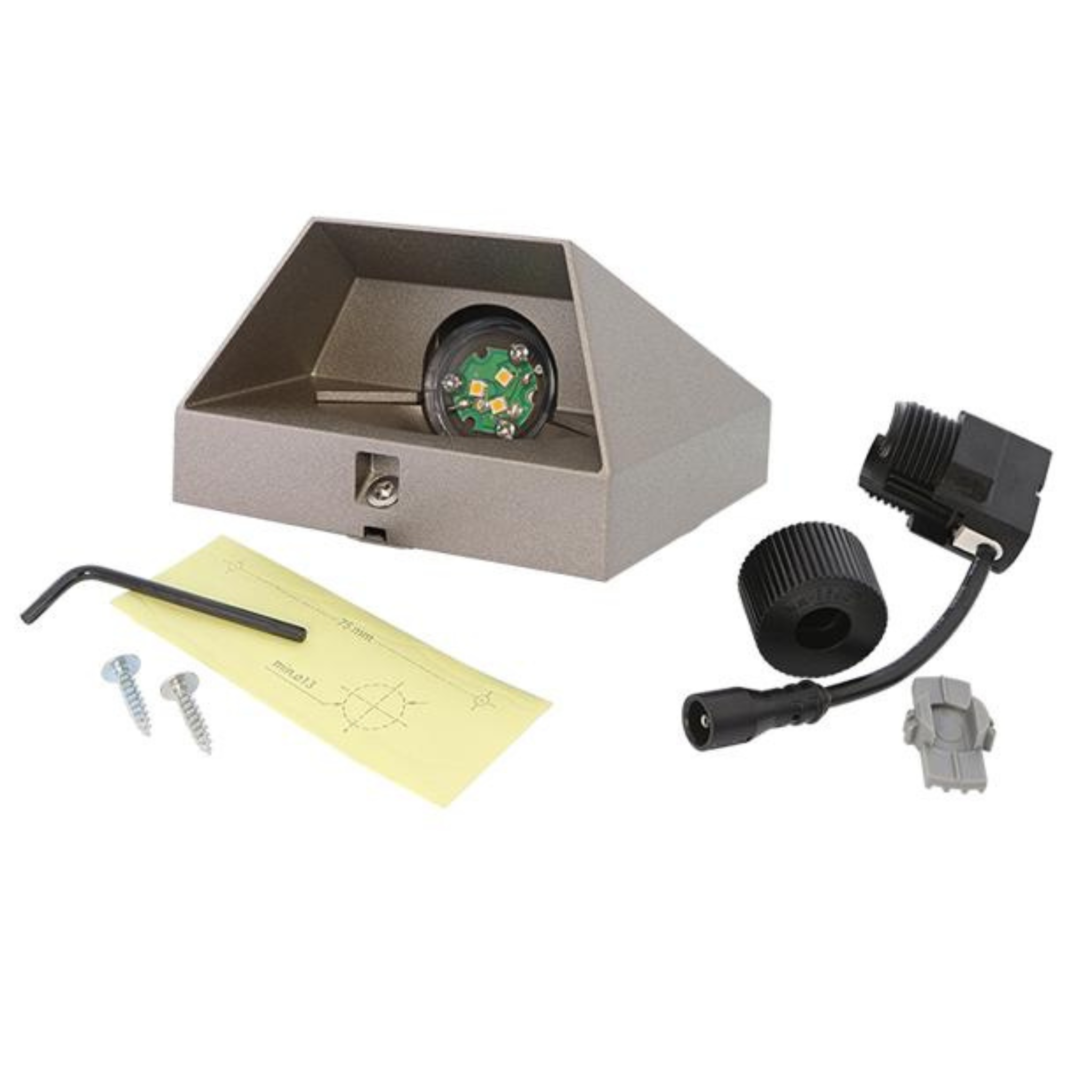

Included in Package EASY-LOCK connector, 60 cm cable, screws, Torx wrench + drilling template
Installation Surface wall mount
Recommended Spacing 2m – 2½m apart at 1.4m - 1.6m height
Warranty 5 Years
Description

IN-LITE Wedge Outdoor LED Wall Light

The in-lite Wedge is a versatile and stylish 12V outdoor wall light designed to cast soft downward light that elevates walls, fences, patios and driveways with warm ambience.

With a square profile and premium finish, this lighting solution blends into modern outdoor spaces while enhancing safety and visual appeal.

Built as part of the Wedge series, this luminaire delivers a wide, attractive downward light without glare, ideal for highlighting architectural features or creating atmospheric accent lighting along outdoor surfaces.

Supplied with an EASY-LOCK connector and 60cm cable, installation is quick and easy within a low-voltage in-lite lighting system.

Key Benefits:

  • Indirect Downward Illumination: Produces a welcoming warm white light that accentuates walls and outdoor surfaces.

  • Flexible Colour Options: Available in Dark Grey, White or Rosé Silver to suit different exterior styles.

  • Outdoor-Ready Build: Durable construction with an IP55 rating for reliable weather resistance.

  • Simple Installation: Supplied with EASY-LOCK connector and cable for fast connection to your garden lighting system.

  • Low Energy Consumption: Efficient LED design keeps power use to a minimum while providing attractive ambient light.

IN-LITE Wedge Outdoor LED Wall Light Specifications

Feature Specification
Brand in-lite
Product WEDGE
Article Number 10301780
Application Outdoor wall, fence, patio, canopy
Light Source Integrated LED
Voltage 12V low voltage
Power Consumption 1W
Net Luminous Flux 33lm
Colour Temperature 2800K (Warm White)
CRI (Colour Rendering Index) 94
Light Direction Downward, indirect
Beam Type Diffuse illumination
IP Rating IP55
Energy Label G
Efficiency 33lm/W
Cable Length 60cm (with EASY-LOCK)
Dimensions (W × H × D) 63mm × 100mm × 100mm
Housing Colours Dark Grey, White, Rosé Silver
Included in Package EASY-LOCK connector, 60 cm cable, screws, Torx wrench + drilling template
Installation Surface wall mount
Recommended Spacing 2m – 2½m apart at 1.4m - 1.6m height
Warranty 5 Years
Easy Installation

Installing an In-Lite Outdoor Lighting set up is as beginner friendly as it gets, even the most novice DIYer's will have no trouble at all!

The system is designed around low-voltage lighting, which means there’s no complicated wiring or specialist electrical knowledge required. With clear instructions and a plug-and-play design, most components simply click together, making it easy to plan and position your lights exactly where you want them.

Once your layout is decided, installation is quick and tidy. The cables can be discreetly laid just beneath the surface, while the fittings are designed to slot neatly into the ground, walls or decking. Because everything works as a complete system, connecting the transformer and testing the lights is simple and stress-free.

Best of all, an in-lite lighting setup is easy to adjust or expand over time. Whether you want to add extra lights or tweak the layout, the flexible design allows you to make changes without starting from scratch!

Here is a step by step guide on getting your In-Lite lighting arrangement set up:

Step 1: Install the smart hub. This should be done in a sheltered dry place such as in a shed or under a canopy. If this is not possible, then install the transformer in the garden in combination with a smart hub protector.

Step 2: Roll out the inlight low voltage cables to all areas that need to be lit. It doesn't have to be buried deeply. A thin layer of soil is sufficient. Then strip the ends of the cables and simply place them in the smart hub.

Step 3: Place the fixtures in the garden according to your lighting plan.

Step 4: Connect each fixture to the main cable via the easy lock provided, you can easily connect them by twisting it shut. The easy lock is 100% safe and watertight.

Step 5 (Smart Hub Transformer required): download the Inlight app and set the schedules. A separate schedule can be set for every zone. You can choose to have them on at all times, to turn them on and off at specific times, or to switch them on at sunset.
