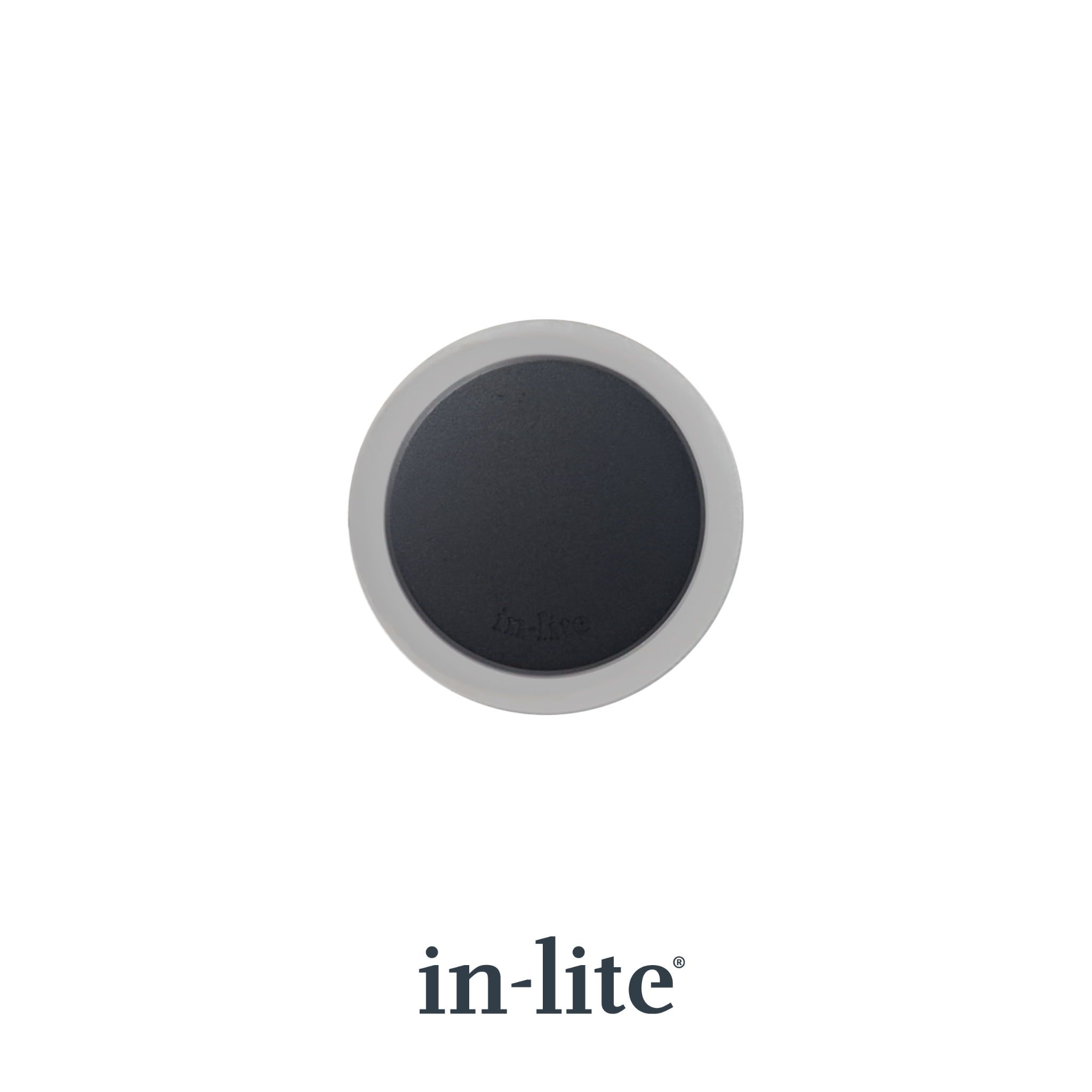

IN-LITE Puck 22 12v Recessed Path Light - Black

IN-LITE Puck 22 12v Recessed Path Light - Black

£67.00
Delivery Time: 1–3 Working Days (in stock) or 3-5 Weeks (out of stock) - Check Availability

Notify me when back in stock

IN-LITE PUCK 22 Mini Outdoor Recessed LED Ground Light

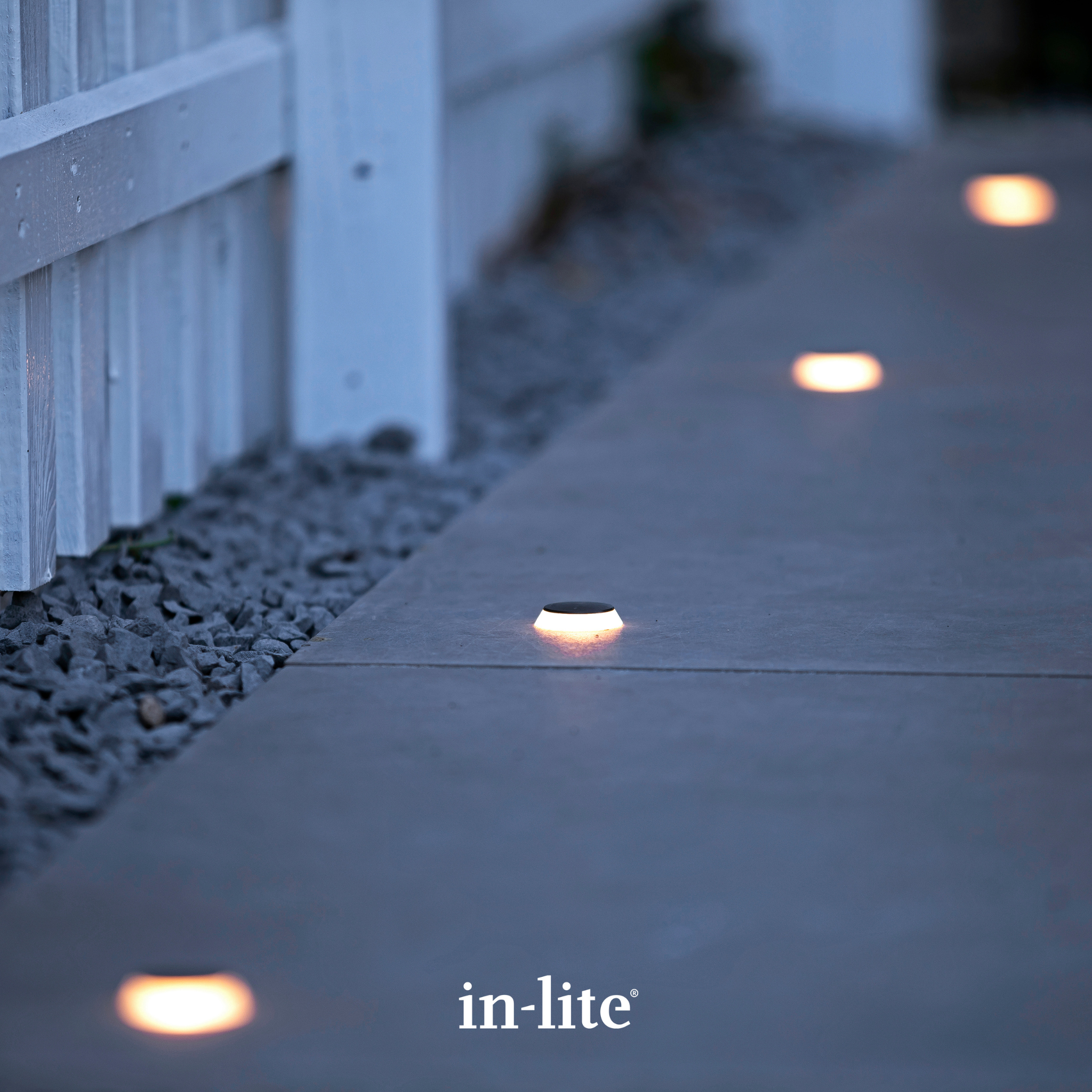

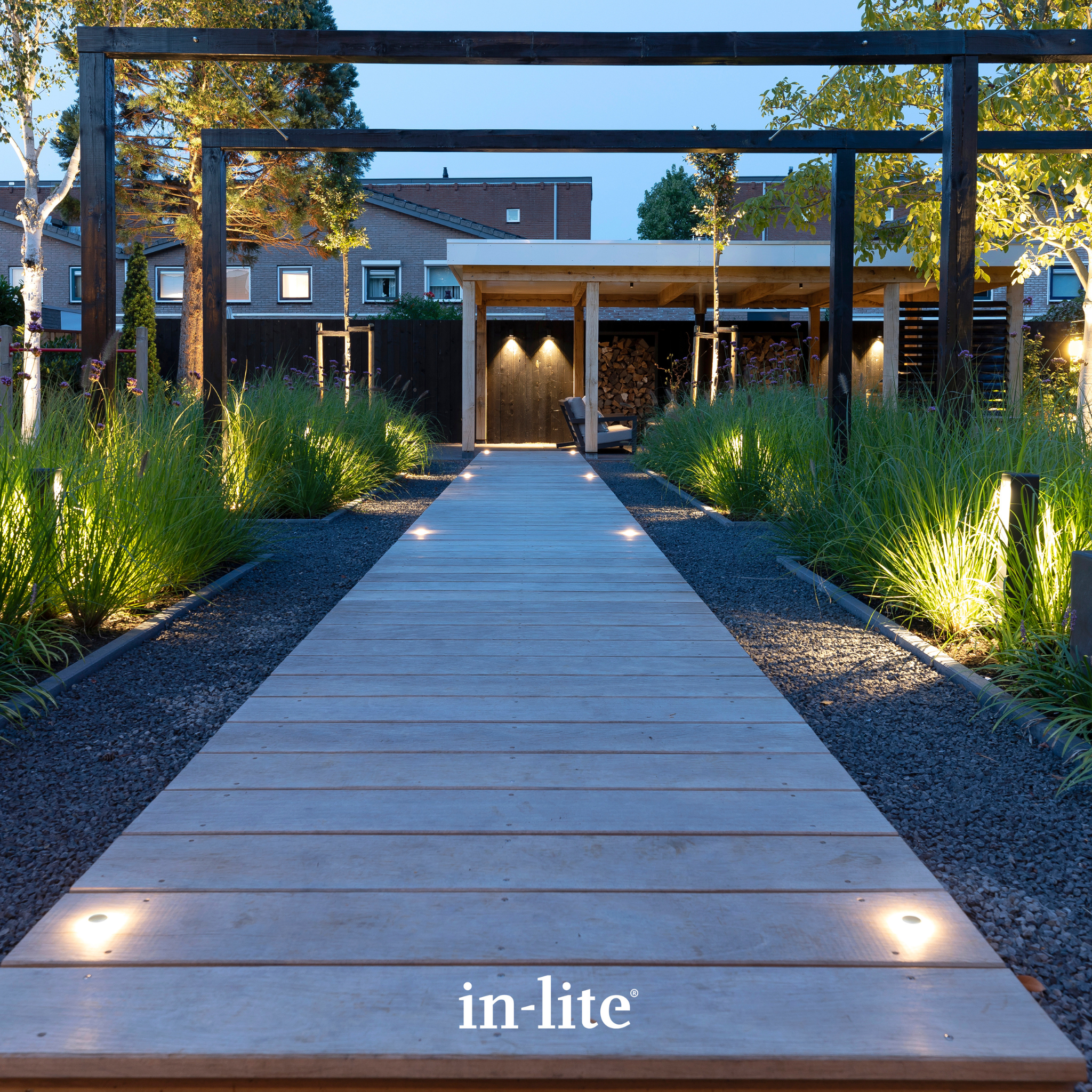

The in‑lite Puck 22 is a compact and subtle outdoor recessed LED ground light designed to radiate soft, ambient light in all directions, making it ideal for marking garden paths, driveways, terraces, steps and outdoor borders.

Its ultra‑small diameter and discreet installation create a refined lighting effect that enhances safety and atmosphere without glare.

Finished with an anodised aluminium cap and built to withstand outdoor conditions with a high IP67 waterproof rating, the Puck 22 integrates seamlessly into modern landscapes while providing dependable long‑lasting performance.

Supplied with an EASY‑LOCK connector, 60 cm cable and baffle plate, this recessed fitting installs neatly into decking, stone or gravel surfaces for a clean, low‑profile look.

Key Benefits:

  • 360° Ambient Illumination: Emits non‑glare light all around to softly illuminate edges of paths, driveways and outdoor spaces.

  • Compact, Discreet Design: Slim Ø22mm profile blends into surfaces for subtle, integrated lighting.

  • Robust Outdoor Performance: IP67 rating ensures reliable use in wet and exposed garden environments.

  • Energy‑Efficient LED: Low power consumption while maintaining a warm, inviting glow.

  • Easy Installation: Includes EASY‑LOCK connector, cable, tapping plate and baffle plate for fast, secure recessed fitting.

IN-LITE Puck 22 Recessed Ground Light Specifications

Feature Specification
Brand in‑lite
Product PUCK 22
Article Number 10104175
Application Outdoor recessed ground lighting (driveway, path, terrace, stairs)
Light Source Integrated LED
Voltage 12V low voltage
Power Consumption 0.6W
Net Luminous Flux 3lm
Colour Temperature 2900K (Warm White)
CRI (Colour Rendering Index) 96
Light Direction All‑around (360°)
Light Type Diffuse illumination
IP Rating IP67 (dust‑tight & waterproof)
Energy Label G
Efficiency 5lm/W
Cable Length 60cm (with EASY‑LOCK)
Dimensions (Diameter × Height) Ø35mm × 37mm
Recessed Depth 55mm
Housing Material Anodised aluminium finish
Included in Package PUCK 22, EASY‑LOCK connector, 60 cm cable, baffle plate
Installation Advice Recess into wood, stone or decking with a 22.4mm hole; install every 1.5m - 2 m for path lighting
Warranty 5 Years
Description

IN-LITE PUCK 22 Mini Outdoor Recessed LED Ground Light

The in‑lite Puck 22 is a compact and subtle outdoor recessed LED ground light designed to radiate soft, ambient light in all directions, making it ideal for marking garden paths, driveways, terraces, steps and outdoor borders.

Its ultra‑small diameter and discreet installation create a refined lighting effect that enhances safety and atmosphere without glare.

Finished with an anodised aluminium cap and built to withstand outdoor conditions with a high IP67 waterproof rating, the Puck 22 integrates seamlessly into modern landscapes while providing dependable long‑lasting performance.

Supplied with an EASY‑LOCK connector, 60 cm cable and baffle plate, this recessed fitting installs neatly into decking, stone or gravel surfaces for a clean, low‑profile look.

Key Benefits:

  • 360° Ambient Illumination: Emits non‑glare light all around to softly illuminate edges of paths, driveways and outdoor spaces.

  • Compact, Discreet Design: Slim Ø22mm profile blends into surfaces for subtle, integrated lighting.

  • Robust Outdoor Performance: IP67 rating ensures reliable use in wet and exposed garden environments.

  • Energy‑Efficient LED: Low power consumption while maintaining a warm, inviting glow.

  • Easy Installation: Includes EASY‑LOCK connector, cable, tapping plate and baffle plate for fast, secure recessed fitting.

IN-LITE Puck 22 Recessed Ground Light Specifications

Feature Specification
Brand in‑lite
Product PUCK 22
Article Number 10104175
Application Outdoor recessed ground lighting (driveway, path, terrace, stairs)
Light Source Integrated LED
Voltage 12V low voltage
Power Consumption 0.6W
Net Luminous Flux 3lm
Colour Temperature 2900K (Warm White)
CRI (Colour Rendering Index) 96
Light Direction All‑around (360°)
Light Type Diffuse illumination
IP Rating IP67 (dust‑tight & waterproof)
Energy Label G
Efficiency 5lm/W
Cable Length 60cm (with EASY‑LOCK)
Dimensions (Diameter × Height) Ø35mm × 37mm
Recessed Depth 55mm
Housing Material Anodised aluminium finish
Included in Package PUCK 22, EASY‑LOCK connector, 60 cm cable, baffle plate
Installation Advice Recess into wood, stone or decking with a 22.4mm hole; install every 1.5m - 2 m for path lighting
Warranty 5 Years
Easy Installation

Installing an In-Lite Outdoor Lighting set up is as beginner friendly as it gets, even the most novice DIYer's will have no trouble at all!

The system is designed around low-voltage lighting, which means there’s no complicated wiring or specialist electrical knowledge required. With clear instructions and a plug-and-play design, most components simply click together, making it easy to plan and position your lights exactly where you want them.

Once your layout is decided, installation is quick and tidy. The cables can be discreetly laid just beneath the surface, while the fittings are designed to slot neatly into the ground, walls or decking. Because everything works as a complete system, connecting the transformer and testing the lights is simple and stress-free.

Best of all, an in-lite lighting setup is easy to adjust or expand over time. Whether you want to add extra lights or tweak the layout, the flexible design allows you to make changes without starting from scratch!

Here is a step by step guide on getting your In-Lite lighting arrangement set up:

Step 1: Install the smart hub. This should be done in a sheltered dry place such as in a shed or under a canopy. If this is not possible, then install the transformer in the garden in combination with a smart hub protector.

Step 2: Roll out the inlight low voltage cables to all areas that need to be lit. It doesn't have to be buried deeply. A thin layer of soil is sufficient. Then strip the ends of the cables and simply place them in the smart hub.

Step 3: Place the fixtures in the garden according to your lighting plan.

Step 4: Connect each fixture to the main cable via the easy lock provided, you can easily connect them by twisting it shut. The easy lock is 100% safe and watertight.

Step 5 (Smart Hub Transformer required): download the Inlight app and set the schedules. A separate schedule can be set for every zone. You can choose to have them on at all times, to turn them on and off at specific times, or to switch them on at sunset.
