IN-LITE Fusion 22 RVS 12v Recessed Light - Stainless Steel

IN-LITE Fusion 22 RVS 12v Recessed Light - Stainless Steel

£58.00
Delivery Time: 1–3 Working Days (in stock) or 3-5 Weeks (out of stock) - Check Availability

Notify me when back in stock

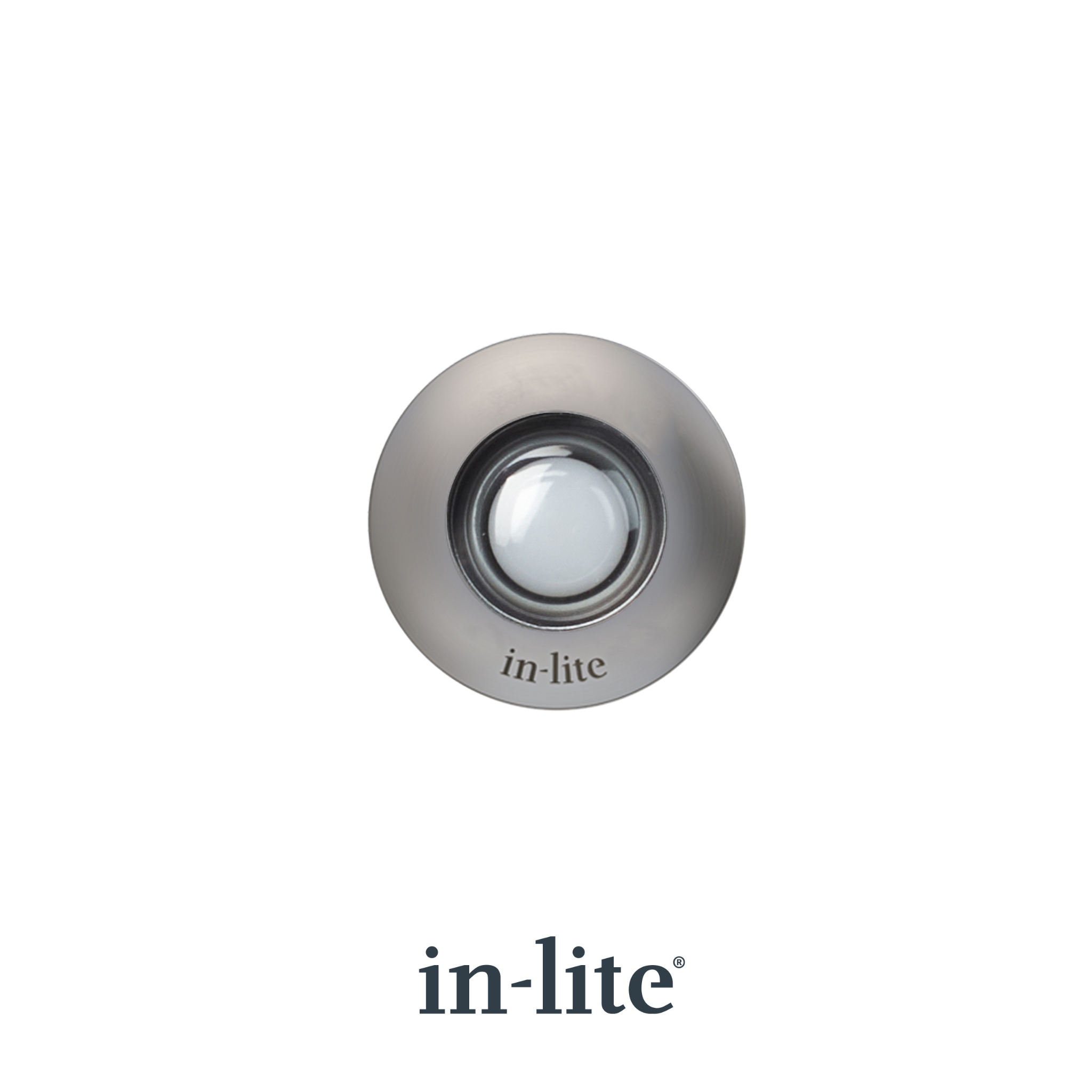

IN-LITE Fusion 22 RVS Mini Outdoor Recessed LED Light - Stainless Steel

The in-lite Fusion 22 RVS is a compact and refined outdoor recessed ground light designed to deliver soft, non-glare illumination that enhances ambience and safety in garden and landscape settings.

With its elegant stainless steel finish and 22mm diameter profile, this luminaire is virtually invisible during the day yet creates a gentle, warm glow at night.

Built for long-lasting performance, the Fusion 22 RVS is fully IP67 weatherproof and suitable for recessed installation into stone, wood, grass, gravel and concrete surfaces. Supplied with an EASY-LOCK connector and 60cm cable for quick setup, it integrates into low-voltage lighting systems.

Key Benefits:

  • Subtle, Soft Illumination: Produces a gentle, non-blinding light to enhance outdoor spaces without harsh glare.

  • Premium Stainless Steel Finish: Elegant ring blends with modern exteriors and improves durability in timber installations.

  • Small & Discreet Design: Compact 22mm fixture remains unobtrusive during the day while delivering ambient illumination at night.

  • Outdoor-Ready Performance: Robust IP67 rating ensures dependable performance in all weather conditions.

  • Easy Installation: Includes EASY-LOCK connector and cable for fast integration into your 12v garden lighting system.

IN-LITE Fusion 22 RVS Recessed Light Specifications

Feature Specification
Brand in-lite
Product Fusion 22 RVS
Article Number 10104150
Application Outdoor recessed ground lighting (pathway, driveway, terrace, steps)
Light Source Integrated LED
Voltage 12V low voltage
Power Consumption 0.2W
Net Luminous Flux 1lm
Colour Temperature 2750K (warm white)
CRI (Colour Rendering Index) 93
Light Direction Upwards diffuse
Beam Type Diffuse ambient illumination
IP Rating IP67 (dust-tight & waterproof)

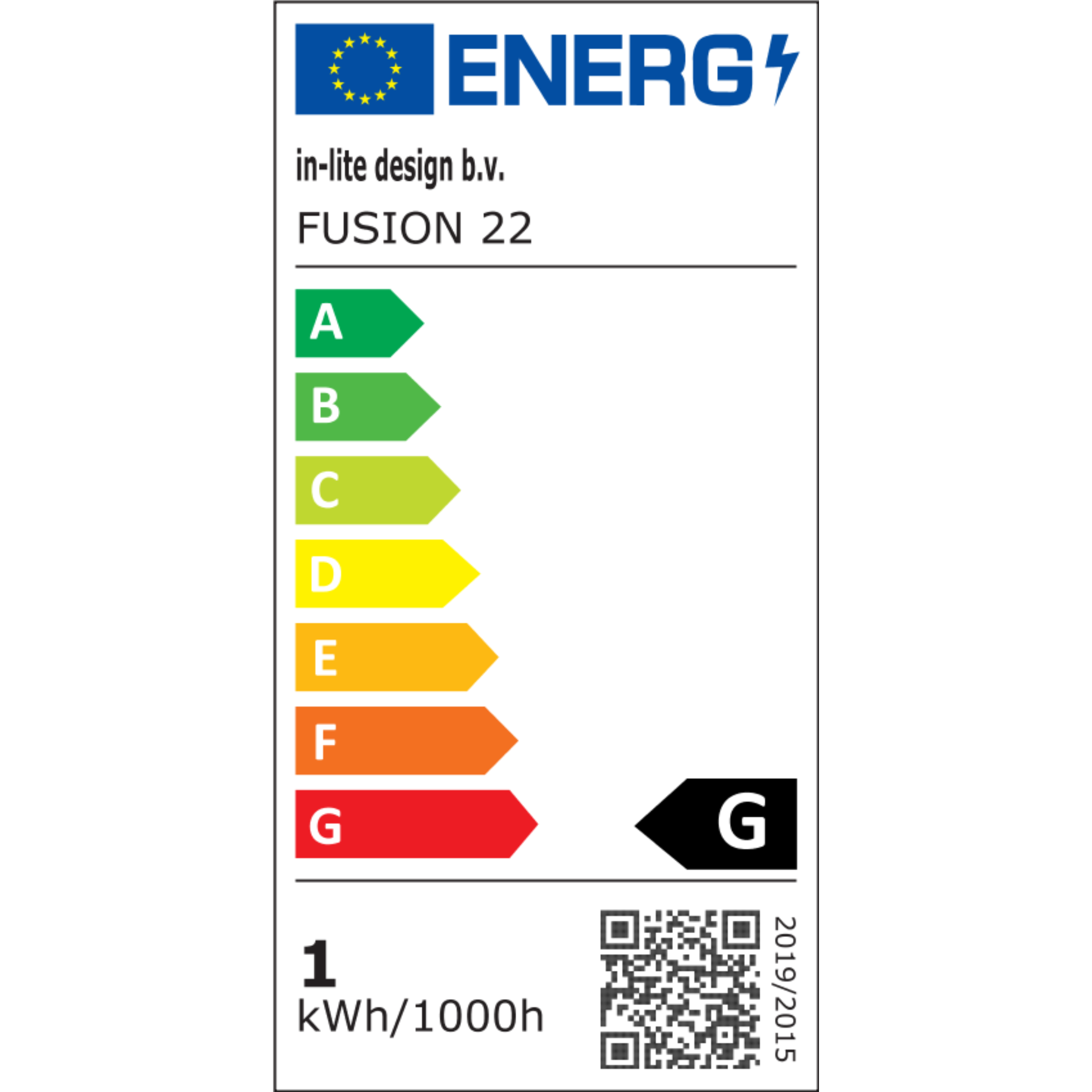

Energy Label G
Efficiency (lm/W) 5lm/W
Cable Length 60cm (with EASY-LOCK connector)
Diameter (mm) 28mm
Height (mm) 37mm
Recessed Depth (mm) 55mm
Housing Finish Stainless steel ring
Suitable Surfaces Concrete, grass, gravel, natural stone, wood
Included in Package EASY-LOCK connector, 60cm cable
Installation Advice Recess into Ø22.4mm hole; recommended spacing 1.5m - 2m
Warranty 5 Years
Description

IN-LITE Fusion 22 RVS Mini Outdoor Recessed LED Light - Stainless Steel

The in-lite Fusion 22 RVS is a compact and refined outdoor recessed ground light designed to deliver soft, non-glare illumination that enhances ambience and safety in garden and landscape settings.

With its elegant stainless steel finish and 22mm diameter profile, this luminaire is virtually invisible during the day yet creates a gentle, warm glow at night.

Built for long-lasting performance, the Fusion 22 RVS is fully IP67 weatherproof and suitable for recessed installation into stone, wood, grass, gravel and concrete surfaces. Supplied with an EASY-LOCK connector and 60cm cable for quick setup, it integrates into low-voltage lighting systems.

Key Benefits:

  • Subtle, Soft Illumination: Produces a gentle, non-blinding light to enhance outdoor spaces without harsh glare.

  • Premium Stainless Steel Finish: Elegant ring blends with modern exteriors and improves durability in timber installations.

  • Small & Discreet Design: Compact 22mm fixture remains unobtrusive during the day while delivering ambient illumination at night.

  • Outdoor-Ready Performance: Robust IP67 rating ensures dependable performance in all weather conditions.

  • Easy Installation: Includes EASY-LOCK connector and cable for fast integration into your 12v garden lighting system.

IN-LITE Fusion 22 RVS Recessed Light Specifications

Feature Specification
Brand in-lite
Product Fusion 22 RVS
Article Number 10104150
Application Outdoor recessed ground lighting (pathway, driveway, terrace, steps)
Light Source Integrated LED
Voltage 12V low voltage
Power Consumption 0.2W
Net Luminous Flux 1lm
Colour Temperature 2750K (warm white)
CRI (Colour Rendering Index) 93
Light Direction Upwards diffuse
Beam Type Diffuse ambient illumination
IP Rating IP67 (dust-tight & waterproof)
Energy Label G
Efficiency (lm/W) 5lm/W
Cable Length 60cm (with EASY-LOCK connector)
Diameter (mm) 28mm
Height (mm) 37mm
Recessed Depth (mm) 55mm
Housing Finish Stainless steel ring
Suitable Surfaces Concrete, grass, gravel, natural stone, wood
Included in Package EASY-LOCK connector, 60cm cable
Installation Advice Recess into Ø22.4mm hole; recommended spacing 1.5m - 2m
Warranty 5 Years
Easy Installation

Installing an In-Lite Outdoor Lighting set up is as beginner friendly as it gets, even the most novice DIYer's will have no trouble at all!

The system is designed around low-voltage lighting, which means there’s no complicated wiring or specialist electrical knowledge required. With clear instructions and a plug-and-play design, most components simply click together, making it easy to plan and position your lights exactly where you want them.

Once your layout is decided, installation is quick and tidy. The cables can be discreetly laid just beneath the surface, while the fittings are designed to slot neatly into the ground, walls or decking. Because everything works as a complete system, connecting the transformer and testing the lights is simple and stress-free.

Best of all, an in-lite lighting setup is easy to adjust or expand over time. Whether you want to add extra lights or tweak the layout, the flexible design allows you to make changes without starting from scratch!

Here is a step by step guide on getting your In-Lite lighting arrangement set up:

Step 1: Install the smart hub. This should be done in a sheltered dry place such as in a shed or under a canopy. If this is not possible, then install the transformer in the garden in combination with a smart hub protector.

Step 2: Roll out the inlight low voltage cables to all areas that need to be lit. It doesn't have to be buried deeply. A thin layer of soil is sufficient. Then strip the ends of the cables and simply place them in the smart hub.

Step 3: Place the fixtures in the garden according to your lighting plan.

Step 4: Connect each fixture to the main cable via the easy lock provided, you can easily connect them by twisting it shut. The easy lock is 100% safe and watertight.

Step 5 (Smart Hub Transformer required): download the Inlight app and set the schedules. A separate schedule can be set for every zone. You can choose to have them on at all times, to turn them on and off at specific times, or to switch them on at sunset.
