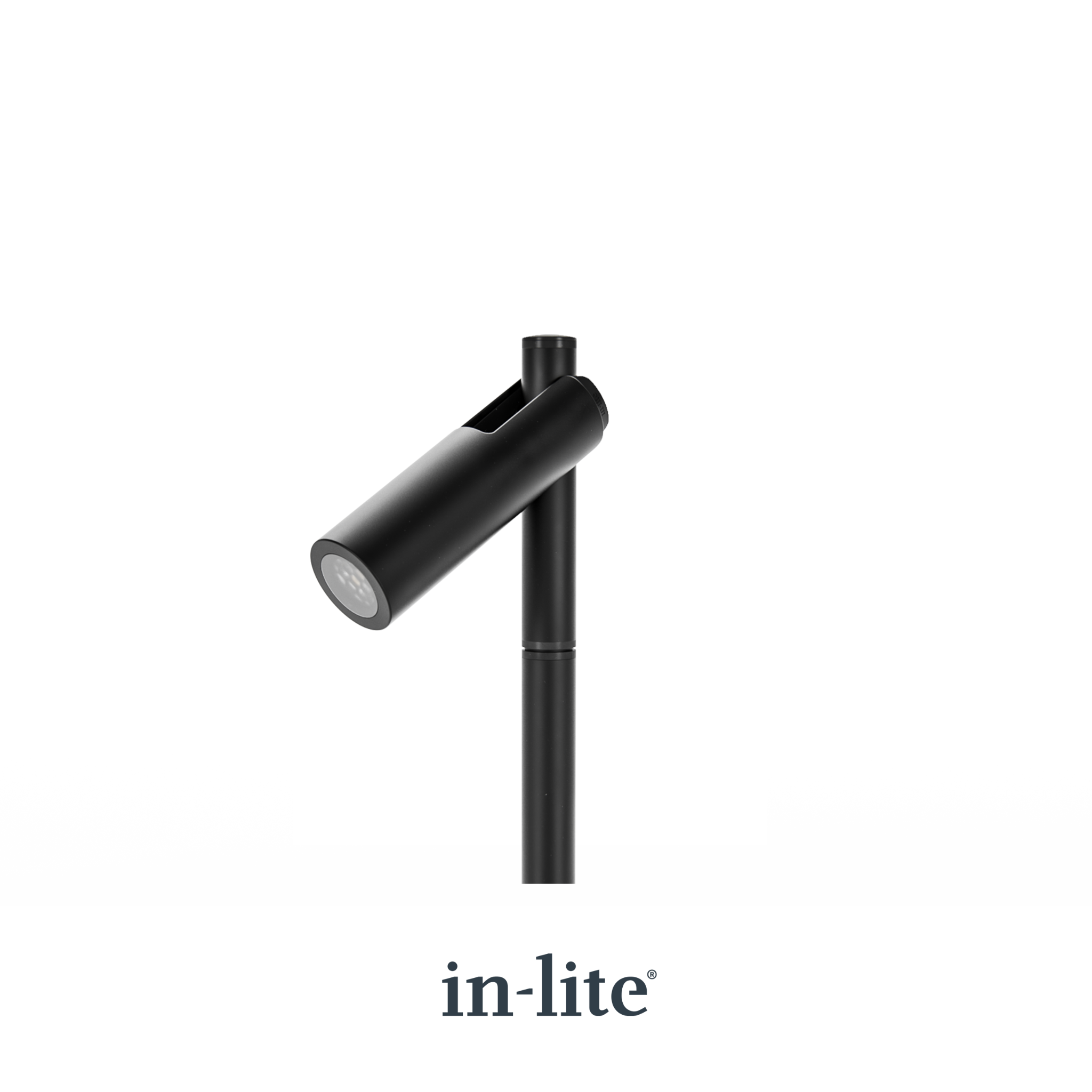

IN-LITE Aim 12v Modular Spike Spot - Black

IN-LITE Aim 12v Modular Spike Spot - Black

£127.00
Delivery Time: 1–3 Working Days (in stock) or 3-5 Weeks (out of stock) - Check Availability

Notify me when back in stock

IN-LITE Aim Modular Outdoor LED Spot Light

The in-lite Aim is a versatile modular outdoor LED spotlight designed to bring focused accent lighting to borders, garden edges, plantings and paths. Its innovative modular system allows you to build up to three adjustable light sources on one fitting, giving you full control over illumination direction and intensity.

Available in a choice of heights:

  • 160 mm Extra Low
  • 400 mm Low
  • 800 mm Classic

Each light head rotates 360° and features a built-in KILLFLASH honeycomb lens to reduce glare and produce comfortable, warm illumination.

Key Benefits:

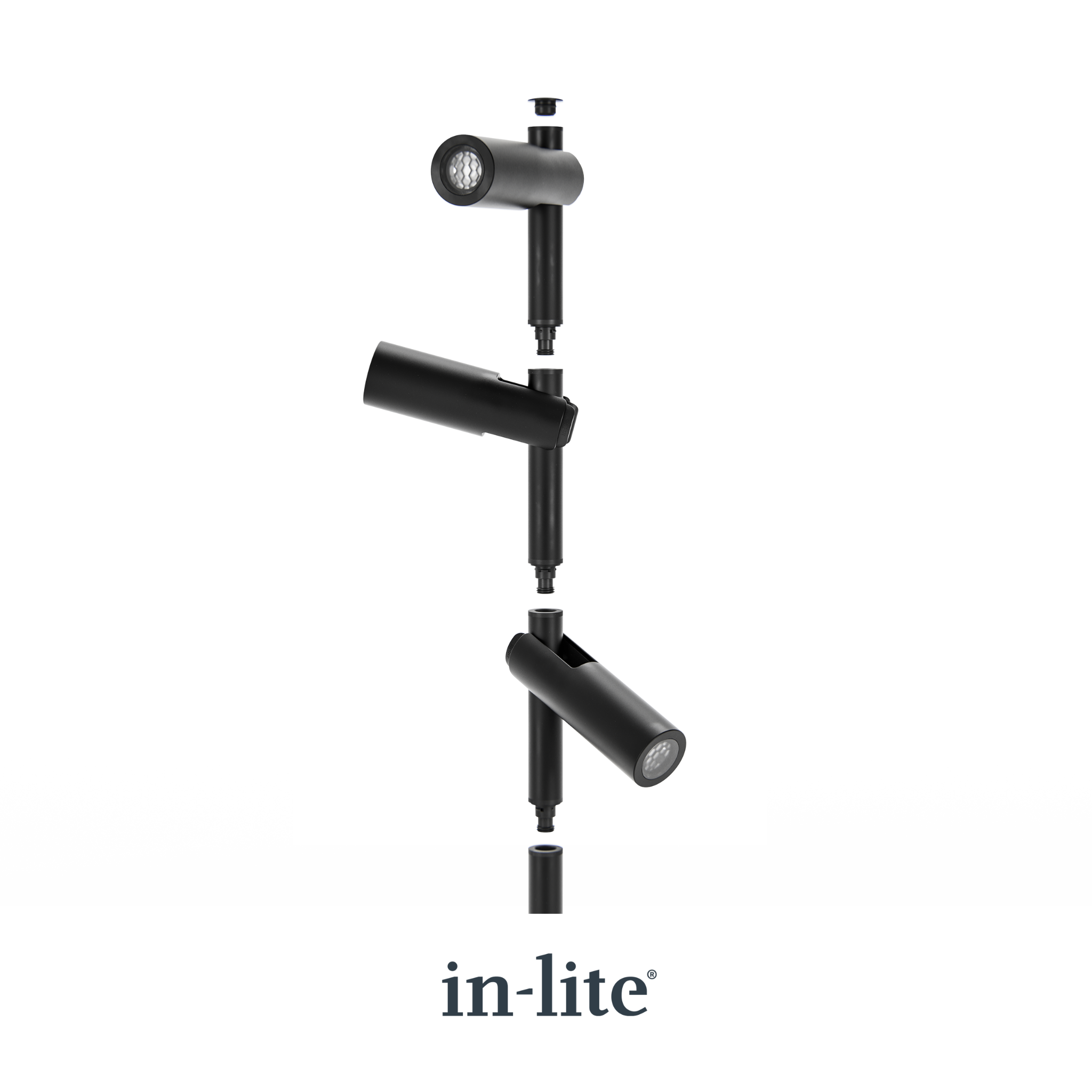

  • Modular Customisation: Configure up to three light heads per fitting to tailor brightness and coverage.

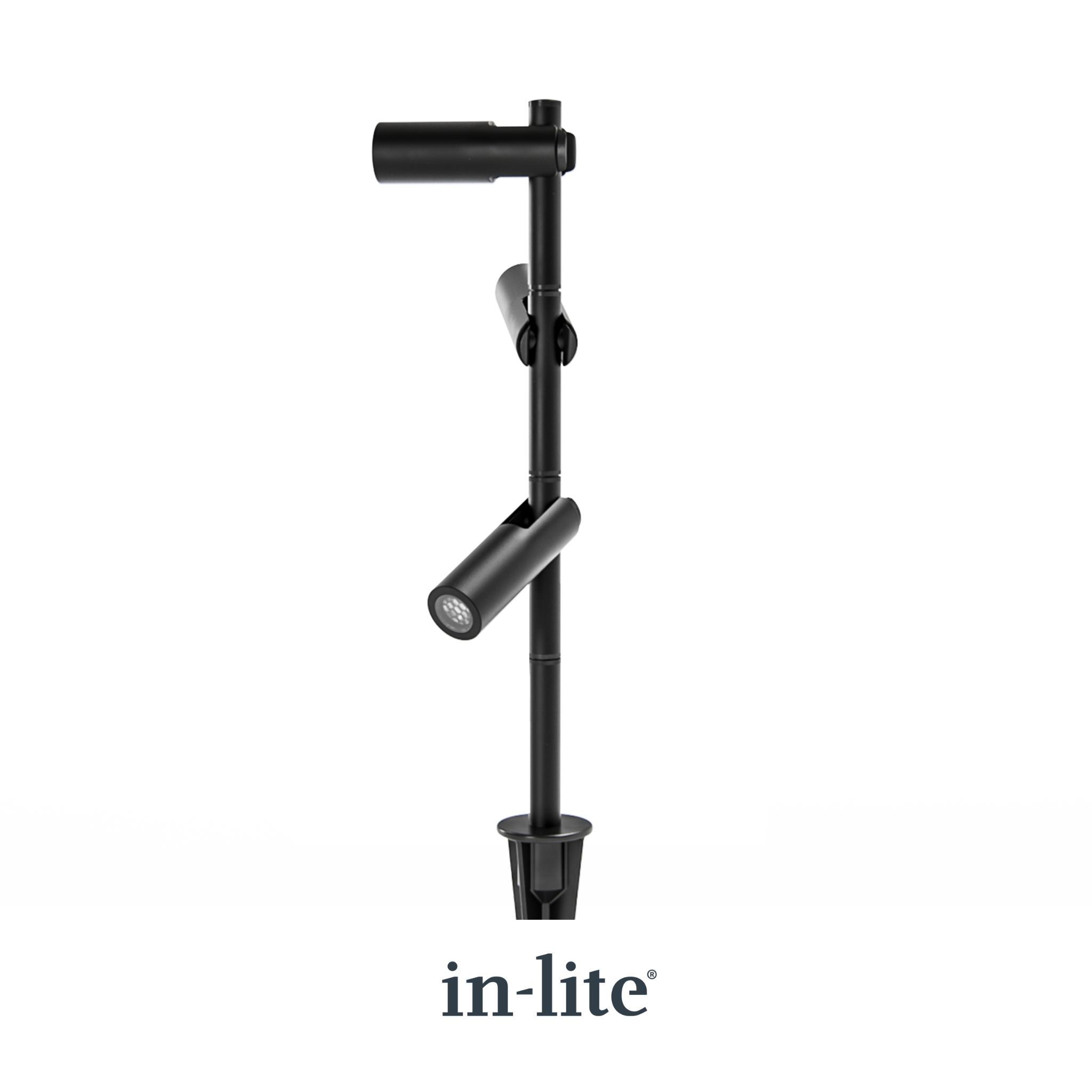

  • 360° Aimable Lighting: Each light head can rotate fully, giving maximum flexibility when directing light.

  • Warm, Glare-Reduced Output: Integrated KILLFLASH honeycomb lens softens light for comfort and visual appeal.

  • Outdoor Durability: Built with an IP55 weather resistance rating, ideal for garden and landscape use.

  • Easy Integration: Designed to work with in-lite’s low-voltage (12V) systems and easy-lock connectors for quick self installation.

IN-LITE Aim Modular Outdoor LED Spot Light Specifications

Feature Specification
Brand in-lite
Product Aim
Application Outdoor spot accent lighting (borders, paths, planting beds)
Light Source Integrated LED
Voltage 12V low voltage
Power Consumption 1.2W per light head
Net Luminous Flux 84lm (per light head)
Colour Temperature 3000K (Warm White)
CRI (Colour Rendering Index) 90
Beam Angle 35° (dependent on light head)
Light Direction Adjustable, 360° rotation per head
IP Rating IP55 (weather resistant)
Energy Label G
Housing Material Anodised aluminium
Configurable Feature Up to 3 light heads per fitting (modular)
Mounting Options Spike (various heights), ceiling/wall adapters (model-dependent)
Cable & Connector EASY-LOCK connector with 60cm cable (typical)
Recommended Use Accent lighting for planting, paths & landscape features
Warranty 5 Years



Description

IN-LITE Aim Modular Outdoor LED Spot Light

The in-lite Aim is a versatile modular outdoor LED spotlight designed to bring focused accent lighting to borders, garden edges, plantings and paths. Its innovative modular system allows you to build up to three adjustable light sources on one fitting, giving you full control over illumination direction and intensity.

Available in a choice of heights:

  • 160 mm Extra Low
  • 400 mm Low
  • 800 mm Classic

Each light head rotates 360° and features a built-in KILLFLASH honeycomb lens to reduce glare and produce comfortable, warm illumination.

Key Benefits:

  • Modular Customisation: Configure up to three light heads per fitting to tailor brightness and coverage.

  • 360° Aimable Lighting: Each light head can rotate fully, giving maximum flexibility when directing light.

  • Warm, Glare-Reduced Output: Integrated KILLFLASH honeycomb lens softens light for comfort and visual appeal.

  • Outdoor Durability: Built with an IP55 weather resistance rating, ideal for garden and landscape use.

  • Easy Integration: Designed to work with in-lite’s low-voltage (12V) systems and easy-lock connectors for quick self installation.

IN-LITE Aim Modular Outdoor LED Spot Light Specifications

Feature Specification
Brand in-lite
Product Aim
Application Outdoor spot accent lighting (borders, paths, planting beds)
Light Source Integrated LED
Voltage 12V low voltage
Power Consumption 1.2W per light head
Net Luminous Flux 84lm (per light head)
Colour Temperature 3000K (Warm White)
CRI (Colour Rendering Index) 90
Beam Angle 35° (dependent on light head)
Light Direction Adjustable, 360° rotation per head
IP Rating IP55 (weather resistant)
Energy Label G
Housing Material Anodised aluminium
Configurable Feature Up to 3 light heads per fitting (modular)
Mounting Options Spike (various heights), ceiling/wall adapters (model-dependent)
Cable & Connector EASY-LOCK connector with 60cm cable (typical)
Recommended Use Accent lighting for planting, paths & landscape features
Warranty 5 Years


Easy Installation

Installing an In-Lite Outdoor Lighting set up is as beginner friendly as it gets, even the most novice DIYer's will have no trouble at all!

The system is designed around low-voltage lighting, which means there’s no complicated wiring or specialist electrical knowledge required. With clear instructions and a plug-and-play design, most components simply click together, making it easy to plan and position your lights exactly where you want them.

Once your layout is decided, installation is quick and tidy. The cables can be discreetly laid just beneath the surface, while the fittings are designed to slot neatly into the ground, walls or decking. Because everything works as a complete system, connecting the transformer and testing the lights is simple and stress-free.

Best of all, an in-lite lighting setup is easy to adjust or expand over time. Whether you want to add extra lights or tweak the layout, the flexible design allows you to make changes without starting from scratch!

Here is a step by step guide on getting your In-Lite lighting arrangement set up:

Step 1: Install the smart hub. This should be done in a sheltered dry place such as in a shed or under a canopy. If this is not possible, then install the transformer in the garden in combination with a smart hub protector.

Step 2: Roll out the inlight low voltage cables to all areas that need to be lit. It doesn't have to be buried deeply. A thin layer of soil is sufficient. Then strip the ends of the cables and simply place them in the smart hub.

Step 3: Place the fixtures in the garden according to your lighting plan.

Step 4: Connect each fixture to the main cable via the easy lock provided, you can easily connect them by twisting it shut. The easy lock is 100% safe and watertight.

Step 5 (Smart Hub Transformer required): download the Inlight app and set the schedules. A separate schedule can be set for every zone. You can choose to have them on at all times, to turn them on and off at specific times, or to switch them on at sunset.
