IN-LITE Ace Down 12v Wall Light - Dark Grey

IN-LITE Ace Down 12v Wall Light - Dark Grey

£146.00
Delivery Time: 1–3 Working Days (in stock) or 3-5 Weeks (out of stock) - Check Availability

Notify me when back in stock

IN-LITE ACE Down Outdoor LED Wall Light

The in-lite ACE Down is a modern outdoor wall light designed to cast a downward beam of warm LED light, enhancing ambience and visibility.

Thanks to its deep-recessed light source and optional accessories like SHUTTER 1, LENS CLEAR or LENS DIFFUSE, you can tailor the beam’s width and quality to your needs.

Supplied with an EASY-LOCK connector and 60cm cable, installation into a 12V in-lite lighting system is quick and intuitive.

Key Benefits:

  • Focused Downward Illumination: Produces a clean, directed beam that beautifully highlights outdoor walls, fences and surfaces.

  • Customisable Light Effect: Compatible with optional accessories to adjust beam spread and warmth.

  • Durable Outdoor-Ready Build: Finished with tough FCBV coating for enhanced weather resistance and long-lasting performance.

  • Subtle, Comfortable Light: LED source positioned deep within the housing to reduce glare and produce a pleasant light effect.

  • Easy Installation: Comes with EASY-LOCK connector, 60cm cable and mounting fixings for fast setup within your in-lite 12V system.

IN-LITE ACE Down Wall Light Specifications

Feature Specification
Brand in-lite
Product ACE Down (Configurable)
Article Number 10301850 (Dark Grey variant)
Application Outdoor wall lighting (walls, fences, façades)
Light Source Integrated LED
Voltage 12V low voltage
Power Consumption 3W
Net Luminous Flux 173lm
Colour Temperature 3000K (Warm White)
CRI (Colour Rendering Index) 91
Light Direction Downward
Beam Type Direct illumination (adjustable with accessories)
IP Rating IP55 (weather resistant)
Energy Label G
Efficiency 58lm/W
Cable Length 60cm (with EASY-LOCK connector)

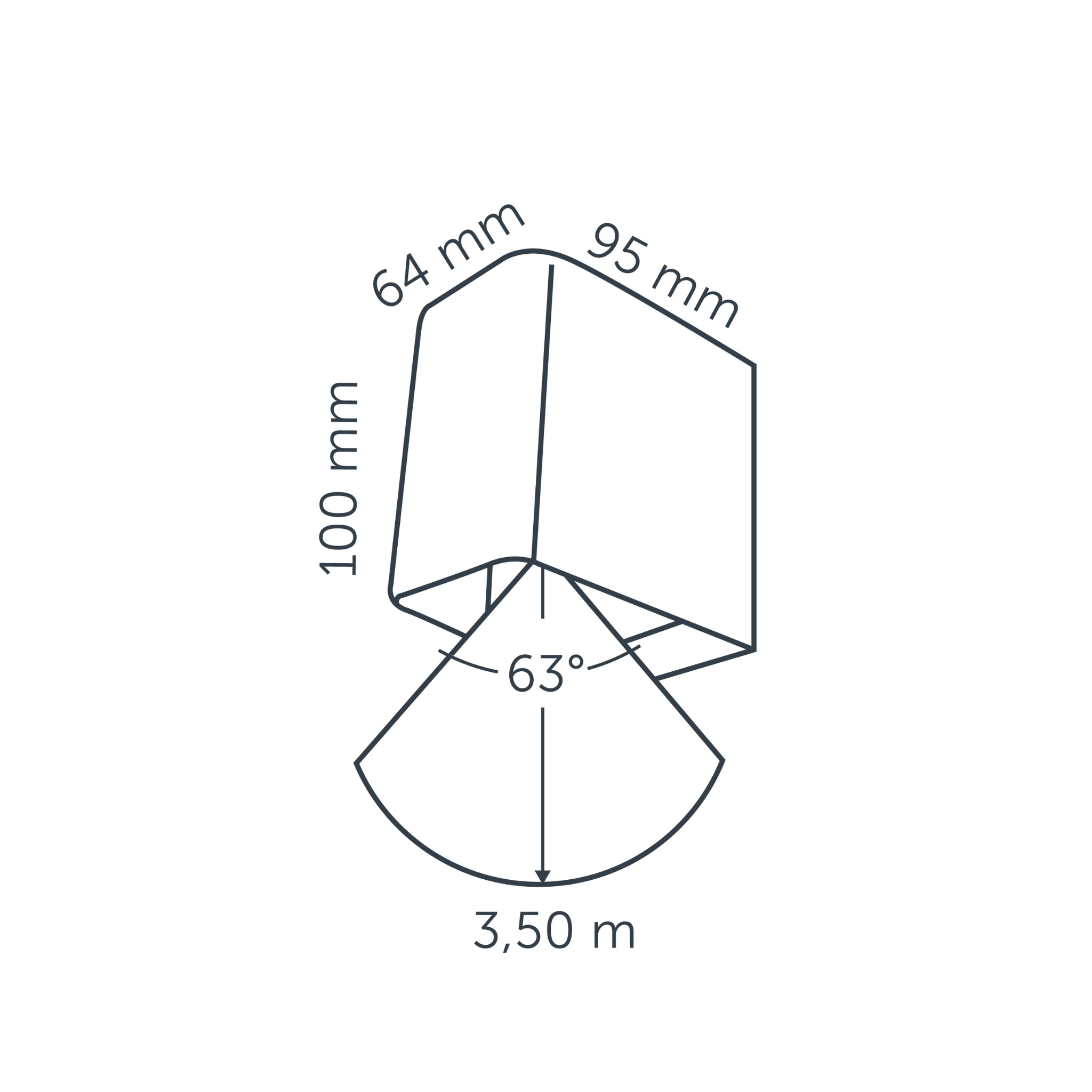

Dimensions (W × H × D) 64mm × 100mm × 95mm

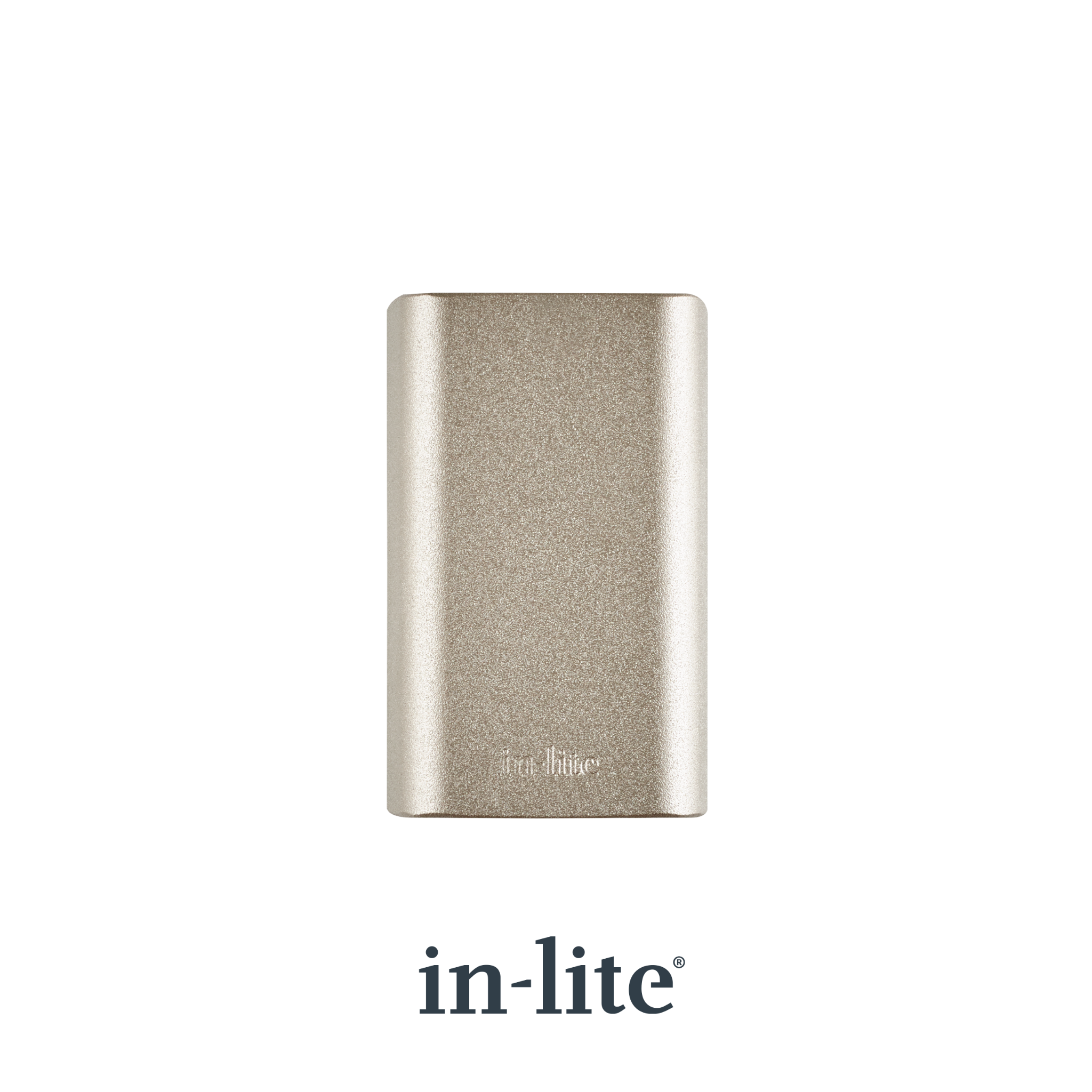

Housing Finish FCBV-coated in selected colour options (Dark Grey, White, Corten, Rosé Silver)
Included in Package EASY-LOCK connector, cable, screws, nylon plugs, Torx wrench
Recommended Spacing 2m - 2½ m apart at 1.4m - 1.8m height
Installation Surface wall mount
Optional Accessories SHUTTER 1, LENS CLEAR, LENS DIFFUSE (sold separately)
Warranty 5 Years
Description

IN-LITE ACE Down Outdoor LED Wall Light

The in-lite ACE Down is a modern outdoor wall light designed to cast a downward beam of warm LED light, enhancing ambience and visibility.

Thanks to its deep-recessed light source and optional accessories like SHUTTER 1, LENS CLEAR or LENS DIFFUSE, you can tailor the beam’s width and quality to your needs.

Supplied with an EASY-LOCK connector and 60cm cable, installation into a 12V in-lite lighting system is quick and intuitive.

Key Benefits:

  • Focused Downward Illumination: Produces a clean, directed beam that beautifully highlights outdoor walls, fences and surfaces.

  • Customisable Light Effect: Compatible with optional accessories to adjust beam spread and warmth.

  • Durable Outdoor-Ready Build: Finished with tough FCBV coating for enhanced weather resistance and long-lasting performance.

  • Subtle, Comfortable Light: LED source positioned deep within the housing to reduce glare and produce a pleasant light effect.

  • Easy Installation: Comes with EASY-LOCK connector, 60cm cable and mounting fixings for fast setup within your in-lite 12V system.

IN-LITE ACE Down Wall Light Specifications

Feature Specification
Brand in-lite
Product ACE Down (Configurable)
Article Number 10301850 (Dark Grey variant)
Application Outdoor wall lighting (walls, fences, façades)
Light Source Integrated LED
Voltage 12V low voltage
Power Consumption 3W
Net Luminous Flux 173lm
Colour Temperature 3000K (Warm White)
CRI (Colour Rendering Index) 91
Light Direction Downward
Beam Type Direct illumination (adjustable with accessories)
IP Rating IP55 (weather resistant)
Energy Label G
Efficiency 58lm/W
Cable Length 60cm (with EASY-LOCK connector)
Dimensions (W × H × D) 64mm × 100mm × 95mm
Housing Finish FCBV-coated in selected colour options (Dark Grey, White, Corten, Rosé Silver)
Included in Package EASY-LOCK connector, cable, screws, nylon plugs, Torx wrench
Recommended Spacing 2m - 2½ m apart at 1.4m - 1.8m height
Installation Surface wall mount
Optional Accessories SHUTTER 1, LENS CLEAR, LENS DIFFUSE (sold separately)
Warranty 5 Years
Easy Installation

Installing an In-Lite Outdoor Lighting set up is as beginner friendly as it gets, even the most novice DIYer's will have no trouble at all!

The system is designed around low-voltage lighting, which means there’s no complicated wiring or specialist electrical knowledge required. With clear instructions and a plug-and-play design, most components simply click together, making it easy to plan and position your lights exactly where you want them.

Once your layout is decided, installation is quick and tidy. The cables can be discreetly laid just beneath the surface, while the fittings are designed to slot neatly into the ground, walls or decking. Because everything works as a complete system, connecting the transformer and testing the lights is simple and stress-free.

Best of all, an in-lite lighting setup is easy to adjust or expand over time. Whether you want to add extra lights or tweak the layout, the flexible design allows you to make changes without starting from scratch!

Here is a step by step guide on getting your In-Lite lighting arrangement set up:

Step 1: Install the smart hub. This should be done in a sheltered dry place such as in a shed or under a canopy. If this is not possible, then install the transformer in the garden in combination with a smart hub protector.

Step 2: Roll out the inlight low voltage cables to all areas that need to be lit. It doesn't have to be buried deeply. A thin layer of soil is sufficient. Then strip the ends of the cables and simply place them in the smart hub.

Step 3: Place the fixtures in the garden according to your lighting plan.

Step 4: Connect each fixture to the main cable via the easy lock provided, you can easily connect them by twisting it shut. The easy lock is 100% safe and watertight.

Step 5 (Smart Hub Transformer required): download the Inlight app and set the schedules. A separate schedule can be set for every zone. You can choose to have them on at all times, to turn them on and off at specific times, or to switch them on at sunset.
