Hunza Eave Light Square Pure LED (Series Circuit) - 90mm Hunza

Hunza Eave Light Square Pure LED (Series Circuit) - IP66

£219.00
Flexible Financing Options Available
Delivery Time: 1–3 Working Days (in stock) or 3-5 Weeks (out of stock) - Check Availability

Notify me when back in stock

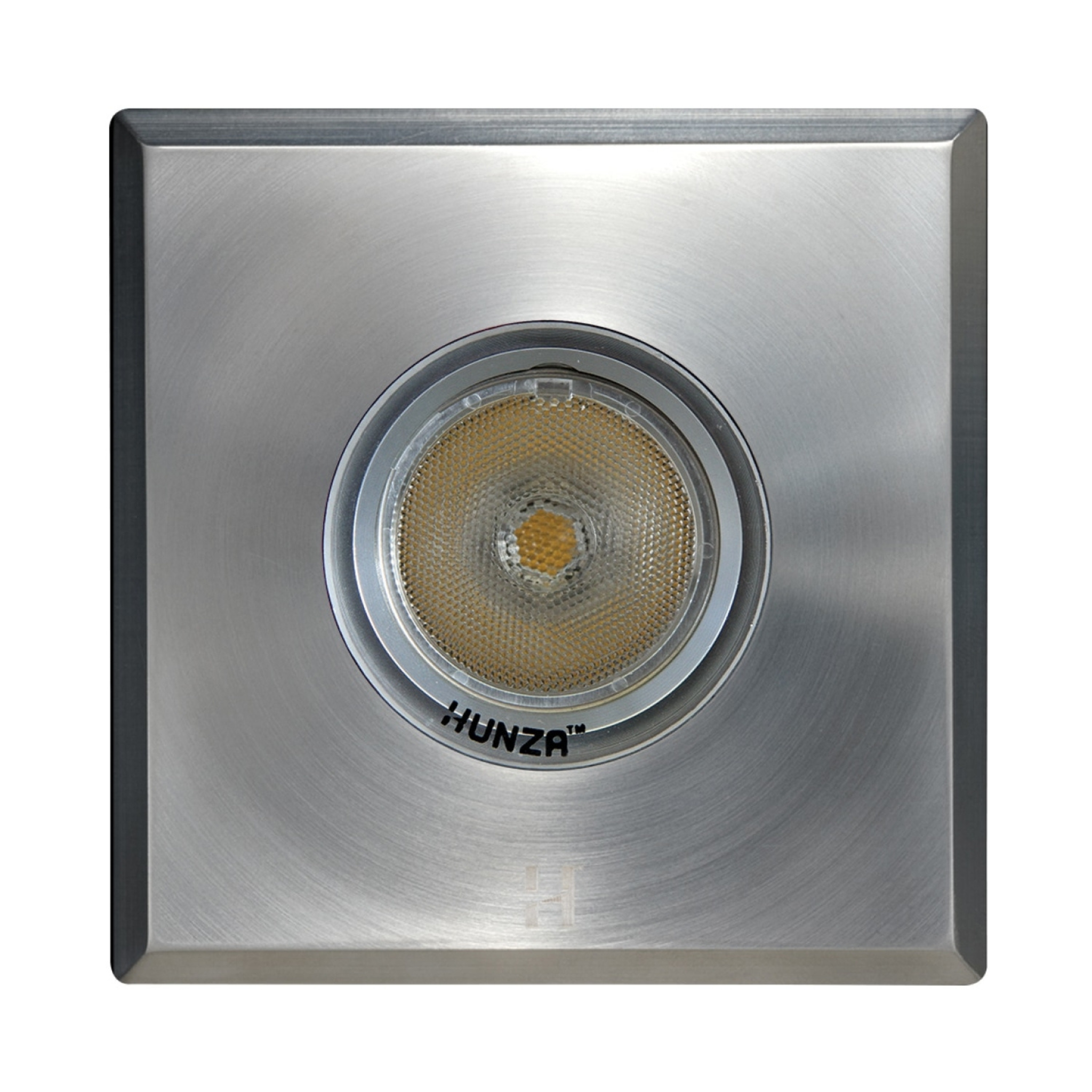

Hunza Eave Light Square Pure LED

The Hunza Eave Light Square PureLED (also known as E-Lite Square) is a recessed downlight designed for mounting into eaves, soffits, verandahs, or any sheltered ceiling environment.

It operates on a constant-current 1050 mA driver (series configuration - optionally supplied), the luminaire offers multiple lumen levels and beam control options, making it perfect for those who want extra control. The modular PureLED technology allows the LED board to be field-replaceable, so maintenance or upgrades do not require replacing the entire unit.

Key Features:

  • Series / constant current operation: 1050 mA (driver supplied as an optional extra)

  • Multi-lumen / multi-power capability: 600lm @ 1050mA (6w), 420lm @ 700mA (4w), 240lm @ 350mA (2w)

  • High efficacy: 100 lm/W

  • Beam / lens options: 15°, 25°, 38°, 60°; Clear or Frosted lens choices

  • LED module: Cree XHP-50-2, plug-and-play, field-replaceable

  • CRI: 90+ (for 3000 K version)

  • Protection: IP66 ingress rating

  • Warranty:
     • 10 years on stainless steel or copper flange components
     • 5 years on aluminium components & electronics

  • Choose from 316 stainless steel, solid copper, or powder-coated aluminium

  • Installation: recessed flush mounted into ceilings or eaves (Ø 65mm cutout typical)

  • Forward voltage (fixture input): 6Vf at full drive

  • Dimmable with a suitable constant-current driver

Hunza Eave Light Square Pure LED Specifications

Specification Value / Options
Luminaire Output 600lm @ 1050mA (6w)
420lm @ 700mA (4w)
240lm @ 350mA (2w)
Lumens per Watt (efficacy) 100 lm/W (delivered, unobstructed beam)
LED Module Cree XHP-50-2, plug & play, field-replaceable
Beam Angles / Lens 15°, 25°, 38°, 60°
Clear or Frosted Lens
Color Temperatures 2700K, 3000K, 4000K
CRI 90+ (for 3000K version)
Ingress Rating IP66
Materials / Finishes 316 stainless steel, solid copper, powder-coated aluminium (various colours)
Warranty 10 years on stainless steel / copper flange components; 5 years on aluminium / electronics
Forward Voltage / Input 6 Vf (fixture input specification)
Cut-out / Installation Dimensions 65 mm diameter cutout typical (for flush mounting)
Driver Requirement Constant-current driver required (optionally supplied) for series wiring at 1050 mA
Dimmability Yes (if driver supports dimming)
Description

Hunza Eave Light Square Pure LED

The Hunza Eave Light Square PureLED (also known as E-Lite Square) is a recessed downlight designed for mounting into eaves, soffits, verandahs, or any sheltered ceiling environment.

It operates on a constant-current 1050 mA driver (series configuration - optionally supplied), the luminaire offers multiple lumen levels and beam control options, making it perfect for those who want extra control. The modular PureLED technology allows the LED board to be field-replaceable, so maintenance or upgrades do not require replacing the entire unit.

Key Features:

  • Series / constant current operation: 1050 mA (driver supplied as an optional extra)

  • Multi-lumen / multi-power capability: 600lm @ 1050mA (6w), 420lm @ 700mA (4w), 240lm @ 350mA (2w)

  • High efficacy: 100 lm/W

  • Beam / lens options: 15°, 25°, 38°, 60°; Clear or Frosted lens choices

  • LED module: Cree XHP-50-2, plug-and-play, field-replaceable

  • CRI: 90+ (for 3000 K version)

  • Protection: IP66 ingress rating

  • Warranty:
     • 10 years on stainless steel or copper flange components
     • 5 years on aluminium components & electronics

  • Choose from 316 stainless steel, solid copper, or powder-coated aluminium

  • Installation: recessed flush mounted into ceilings or eaves (Ø 65mm cutout typical)

  • Forward voltage (fixture input): 6Vf at full drive

  • Dimmable with a suitable constant-current driver

Hunza Eave Light Square Pure LED Specifications

Specification Value / Options
Luminaire Output 600lm @ 1050mA (6w)
420lm @ 700mA (4w)
240lm @ 350mA (2w)
Lumens per Watt (efficacy) 100 lm/W (delivered, unobstructed beam)
LED Module Cree XHP-50-2, plug & play, field-replaceable
Beam Angles / Lens 15°, 25°, 38°, 60°
Clear or Frosted Lens
Color Temperatures 2700K, 3000K, 4000K
CRI 90+ (for 3000K version)
Ingress Rating IP66
Materials / Finishes 316 stainless steel, solid copper, powder-coated aluminium (various colours)
Warranty 10 years on stainless steel / copper flange components; 5 years on aluminium / electronics
Forward Voltage / Input 6 Vf (fixture input specification)
Cut-out / Installation Dimensions 65 mm diameter cutout typical (for flush mounting)
Driver Requirement Constant-current driver required (optionally supplied) for series wiring at 1050 mA
Dimmability Yes (if driver supports dimming)
Series vs Parallel

Series vs Parallel Circuits

When planning your outdoor lighting, it helps to understand how series and parallel circuits work, so you can pick the setup that suits your space.

What Are They?

Series circuits connect lights one after another along a single path, meaning the same current flows through each light.

A diagram showing how a series circuit works

Parallel circuits connect each light directly to the power source, so each operates independently. The type of circuit you choose affects brightness, maintenance, and overall layout.

A diagram showing how a parallel circuit works

Why Choose Series?

Series circuits are straightforward to install and need less wiring, making them a practical choice for many outdoor lighting setups. They provide a uniform glow across all lights and are easy to extend along a path or around a patio. With modern outdoor lights being highly reliable, interruptions are rare, meaning series circuits can offer a simple, efficient, and visually pleasing solution for most homes.

Why Choose Parallel?

Parallel circuits allow each light to operate independently, so if one fails, the rest continue to shine. They give consistent brightness across all bulbs and are flexible if you plan to move or add lights later. However, they can be slightly more complex to install and requires more cabling (legally required to use armoured cables).

Both types of circuits have their advantages, but for a clean, efficient setup that delivers a consistent glow, most homeowners find series circuits the better option.

Which Material To Choose?

Powder-Coated Light Fittings (Standard)

Powder-coated lights are a cost-effective option with plenty of colour and finish choices, making them versatile for many designs. The coating provides protection, though it can chip or fade over time in harsh outdoor conditions. Perfect for customers seeking budget-friendly, stylish lighting without the premium longevity of copper or stainless steel.

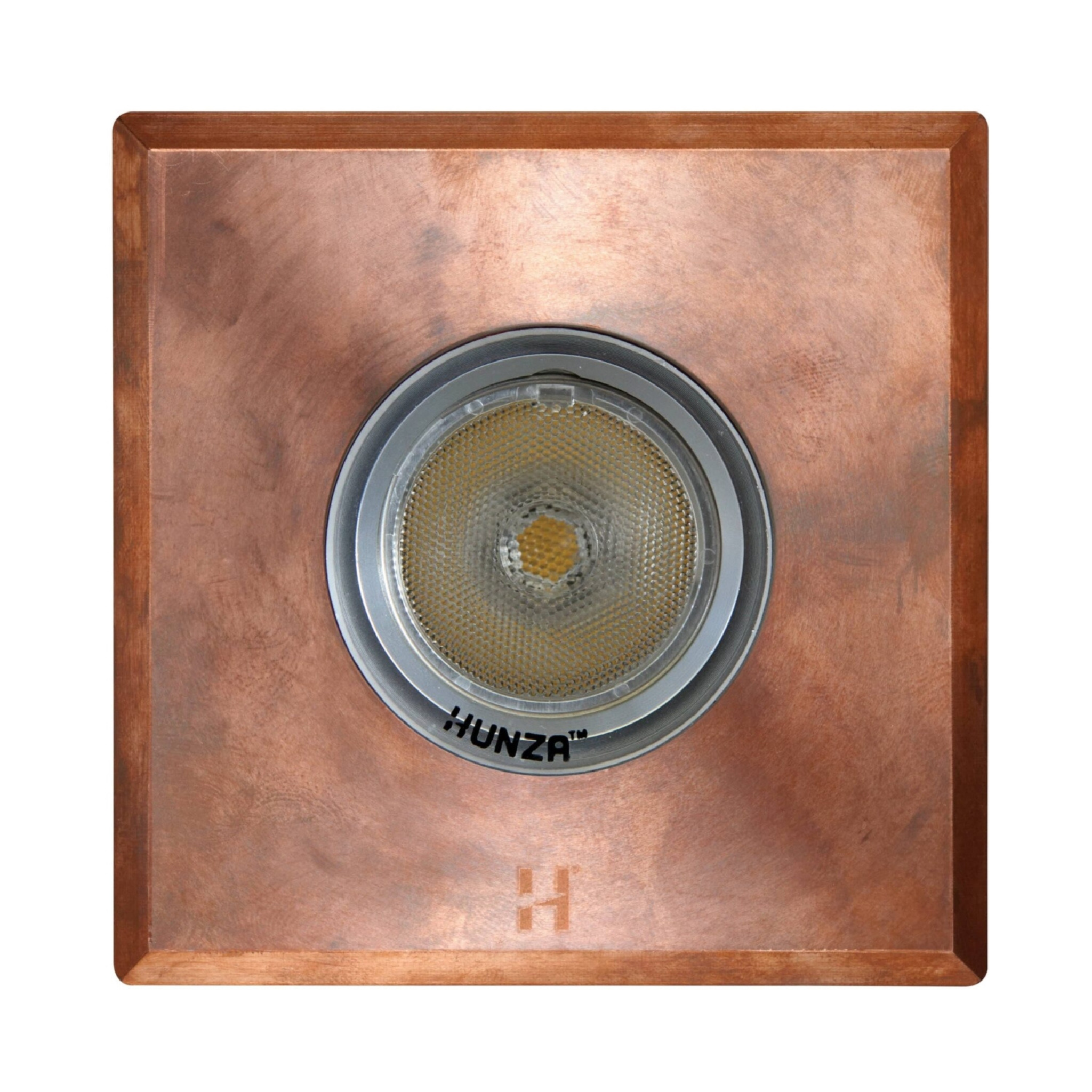

Copper Light Fittings (Premium)

Copper develops a beautiful natural patina over time, changing from warm brown to green verdigris, giving each light a unique character. Extremely durable and corrosion-resistant, copper actually becomes more protected as it ages. Its timeless, elegant look makes it a statement material, perfect for customers who want a high-end fixture that gains character with age.

Stainless Steel Light Fittings (Premium)

Stainless steel offers a sleek, modern appearance that stays consistent over time. Highly resistant to rust, corrosion, and staining - especially marine-grade (316) stainless steel - it requires very little maintenance. Ideal for customers who want a long-lasting, contemporary look without the natural ageing process of copper.
